Description	This article describes why the device does not reflect as an HA cluster being selected in the automation stitch on the security fabric root.
Scope	FortiGate.

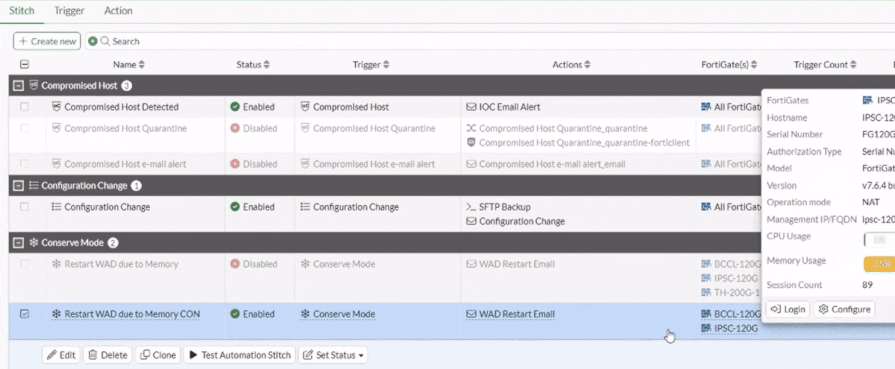

Solution	When trying to add the current HA cluster in the FortiGate(s) of the automation stitch, it fails to save changes without any error message.  This can happen because the value of 'set ha-group-id' under 'config system automation-destination' does not match the value 'set group-id' under 'config system ha'.  config system ha     set group-id 1  <--------     set group-name "HA-Group"     set mode a-p end config system automation-destination     edit "Restart WAD due to Memory"         set type ha-cluster         set destination "HA-Group"         set ha-group-id 2  <------     next end Correcting the ha-group-id to match those of the HA group-id settings will allow the settings to be saved successfully. Additionally, it is expected that FortiOS generates new entries within 'config system automation-destination' when the destination is configured or modified. See this article for more info: Technical Tip: Behavior of automation stitch on a HA cluster and use of automation-destination.
