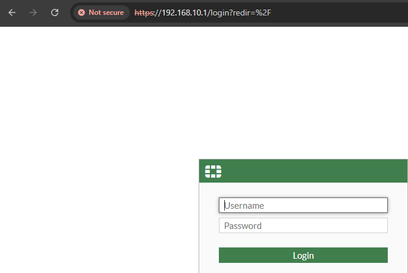

In this example, the PKI administrator got redirected back to the login page after selecting the certificate during a login attempt on the Administrative GUI.
Debug outputs show 'Certificate is not yet valid' message (outputs omitted).
diagnose debug res
diagnose debug app fnbamd -1
diagnose debug en
[103] __cert_chg_st- 'Init'
[201] fnbamd_cert_load_certs_from_req-1 cert(s) in req.
[372] fnbamd_chain_build-Extend chain by system trust store. (good: 'CA_Cert_2')
[337] fnbamd_chain_build-Following depth 1
[99] __cert_chg_st- 'Init' -> 'Validation'
[1011] __cert_verify-Chain is complete.
[550] fnbamd_cert_verify-Following cert chain depth 0
[555] fnbamd_cert_verify-Certificate is not yet valid
[625] fnbamd_cert_verify-Issuer found: CA_Cert_2 (SSL_DPI opt 1)
[705] fnbamd_cert_check_group_list-checking group with name 'PKI_ADMIN'
[518] __check_add_peer-check 'user2'
[394] peer_subject_cn_check-Cert subject 'C = CA, ST = Ontario, L = Ottawa, O = Fortinet, CN = user2'
[322] __RDN_match-Checking 'CN' val 'user2' -- match.
[352] __cert_subject_RDN_compare-Total matched RDNs in cert: 1
[419] peer_subject_cn_check-Subject is good.
[525] __check_add_peer-'user2' check ret:good
[1264] fnbamd_cert_auth_copy_cert_status-Matched peer user 'user2'
[946] fnbamd_cert_check_matched_groups-matched
[884] fnbamd_cert_check_matched_groups-checking group with name 'PKI_ADMIN'
[239] fnbamd_comm_send_result-Sending result 0 (nid 672) for req 16003124404225, len=2614
[137] fnbamd_peer_ctx_free-Freeing peer ctx 'user2'
This issue is due to time discrepancy. In this example, the client certificate is valid from November 20, 2025 3:24:37 PM as shown below:
However, FortiGate current date and time was 2025/11/20 09:30:43 (AM) which is before the valid from date of the client certificate.
To resolve this issue, there are two options:
- Adjust the FortiGate time zone under System -> Settings if the current time zone is incorrect to ensure that the FortiGate's date and time are set after the 'valid from' date and time of the client certificate.
- Wait until the FortiGate's time surpasses the 'valid from' date of the client certificate.
