Technical Tip: Workflow of authentication and RADIUS messages when FortiAuthenticator is used to insert 2FA.

[Markus_M]

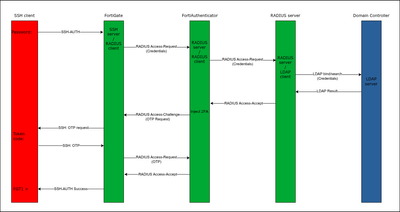

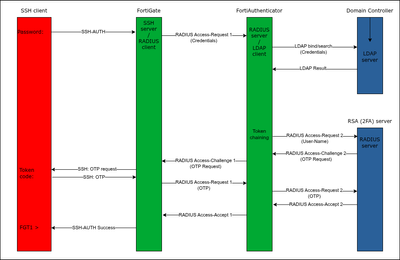

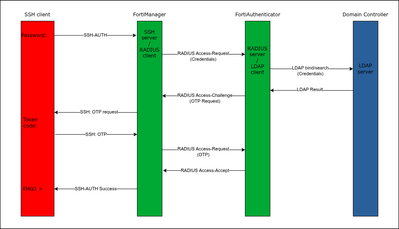

Description	In environments that integrate two-factor authentication it is important to understand the message flow. If troubleshooting is required, it is important to understand what messages may be problematic or missing, in order to troubleshoot at the correct node that introduces the failure. This article describes the message flow of the various nodes used in 2FA-setups with three examples. Note that these are examples and not an exhaustive list. The flow may vary on the deployment and introduce other components whose presence needs to be understood.
Scope	RADIUS clients like FortiGate, RADIUS servers like FortiAuthenticator
Solution	The minimum setup for 2FA would include a RADIUS server like FortiAuthenticator, set up to ask for the second factor in form of a One-Time-Password (OTP) and a RADIUS client asking to authenticate. In such setups, there are several roles that may appear multiple times and even can be shared by a single node. Client, located at the end user: That's typically a web browser or SSH client, like PuTTY, connecting to a server that serves this protocols connection. Server, which will have the role to ask for credentials and verify them towards a user database. This would be called the authenticator (not to be confused with the FortiAuthenticator). The server, serving an HTTPS or SSH connection could be anything, a terminal, a switch or a web server. In these examples a FortiGate or FortiManager (which serve either SSH or HTTPS). The user database that will verify the credentials. A commonly used user database is a domain controller. In this set of roles, the client (a) wouldn't know what role the server (b) actually has or to which user database (c) the user would authenticate to. This flow is entirely sequential. (c) will not know what (a) is and vice versa. A common setup consists of some client authenticating to FortiGate web UI, a FortiAuthenticator as RADIUS server that also injects 2FA and a domain controller. In other words, the client authenticates to FortiGate, the FortiGate tries to authenticate the user towards the FortiAuthenticator via RADIUS and FortiAuthenticator tries to authenticate the user towards the domain controller via LDAP. The simple authentication flow would then follow this layout: client (a) <SSH (or HTTPS)> FortiGate (b) <RADIUS> FortiAuthenticator (c) <LDAP> Domain controller (d) The message flow between those four nodes is sequential. One node speaks to the next and expects a response. (a) speaks to (b) and expects a response. (a) does not interact with (c) or (d). (b) also would not interact with (d). If (b) is waiting for a response from (c), this also means that (a) is waiting for a response from (b). If (c) does not send a response, (b) will not return one to (a) either. The following flow attempts to visualize this: example 1 Note: The nodes happen to be example products, but the FortiManager can be a FortiGate, or something else like an OpenSSH server. The FortiAuthenticator may also be a different type of server. The steps itself: Client login prompt for credentials sending SSH-AUTH (credentials). FortiManager UI sending RADIUS Access-Request (credentials). FortiAuthenticator sending an LDAP-query (credentials). Domain controller (LDAP server) sending LDAP-response (credentials accepted). FortiAuthenticator sending RADIUS Access-Challenge (OTP request). FortiManager UI sending SSH (OTP prompt). The Client displaying OTP prompt to the user. The user entering an OTP on the client, sending the OTP via SSH. FortiManager sending RADIUS Access-Request (OTP). FortiAuthenticator sends RADIUS Access-Accept. FortiManager UI Accepted login, sends via SSH. The Client shows a command prompt. This behaves similar in case there is a response, but the response doesn't contain the correct parameters, like no request for a second factor, but an Authentication-Accept. Another very common example is that the server rejects the authentication. So if (d) rejects authentication, but the credentials provided from (a) to (d) (over (b) and (c)) are correct, the reason on the server that creates the unexpected response, must be understood. Troubleshooting (b) or (c) may not lead somewhere unless either node has the capability to change the appearance of credentials (like RADIUS authentication method, username format as an example). The second example utilizes an additional step, where FortiAuthenticator was inserted in an existing RADIUS communication to inject a 2FA prompt, without touching the existing RADIUS client or RADIUS server. Client (a) <SSH (or HTTPS)> FortiGate (b) <RADIUS 1> FortiAuthenticator (c) <RADIUS 2> RADIUS server (d) <LDAP> Domain controller (e). The previous steps will be very similar, except that between step 4) and 5) the RADIUS server receives a message via RADIUS and likewise responds after the LDAP server responded to its LDAP request The following flow diagram will also visualize this: example 2 The third example is a bit complex as it reflects a function that FortiAuthenticator authenticate the user towards the LDAP-server (first factor), like in the first example, but will then contact the second RADIUS server that would only query for the second factor. The following flow diagram visualizes this: example 3 The message flow broken down: Client login prompt for credentials sending SSH-AUTH (credentials). FortiGate UI sending RADIUS Access-Request 1 (credentials). FortiAuthenticator sending an LDAP-query (credentials). Domain controller (LDAP server) sending LDAP-response (credentials accepted). FortiAuthenticator sending RADIUS Access-Request 2 (authentication). RSA server sending RADIUS Access-Challenge 2 (OTP request). FortiAuthenticator sending RADIUS Access-Challenge 1 (OTP request). FortiGate UI sending SSH (OTP prompt). The Client displaying OTP prompt to the user. The user entering an OTP in the client, which sends the OTP via SSH. FortiGate sending aRADIUS Access-Request 1 (OTP). FortiAuthenticator sending RADIUS Access-Request 2 (OTP). The RSA-server sends RADIUS Access-Accept 2. FortiAuthenticator sends RADIUS Access-Accept 1. FortiGate UI Accepted login via SSH-AUTH. The Client shows a command prompt. In either case, it helps to understand what message in this flow is not working and up until which point the messages follow that flow. Troubleshoot the node that produces a flow that deviates from the description.
