Article Id 315018
Description This article describes how to fix the layer 3 connectivity issue when multiple policies with VIPs using the same external IP and map IP addresses but different interfaces.
Scope FortiGate v7.4.3.
Solution

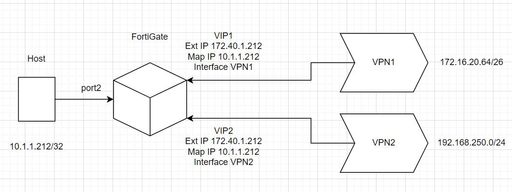

When this VPN topology is in place:

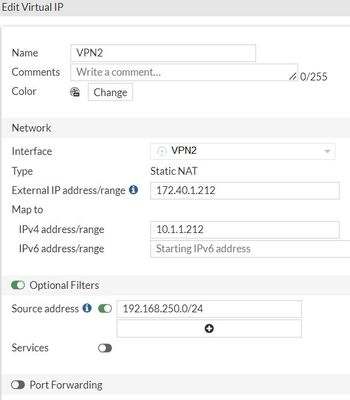

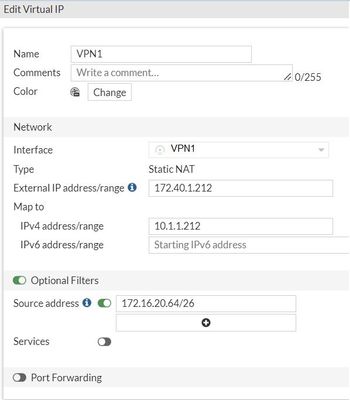

To allow this traffic on two different policies, configure the source address option on every VIP:





Configure the policies and specify the VIPs on each policy:

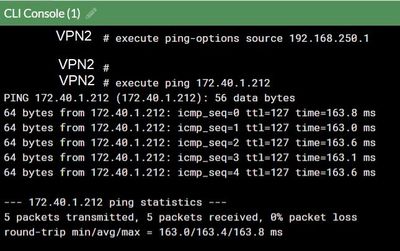

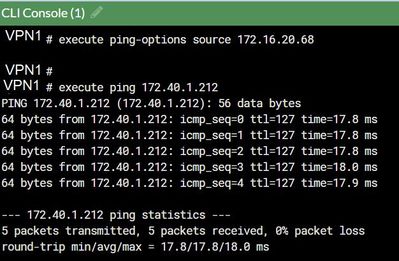

Test ping from both VPN sources:
