Technical Tip: Use SD-WAN for local out traffic or Management traffic (DNS, NTP, sflow,netflow, LDAP, Radius etc)

[Mrinmoy]

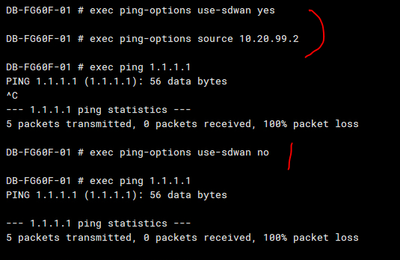

Description	This article discusses that Local-out traffic is defined as the traffic initiated by FortiGate, usually for management purposes. For example, when it is necessary to ping a device from FortiGate, that is local-out traffic. When FortiGate connects to FortiGuard to download the latest definitions, that is also local-out traffic.
Scope	FortiGate v6.4 or later.
Solution	Traffic that originates from the FortiGate destined to external servers can be routed via SD-WAN rules as well By default, local out traffic is forwarded based on the routing table lookup Interface-select-method is available on multiple features: config system dns | ntp | sflow | netflow config system central-management config system fortiguard config user radius | ldap | fsso config log fortianalyzer setting config log syslogd setting Note: For central management, the local traffic is checked against SD-WAN logic only upon session creation. It is by design not to terminate the FortiManager-FortiGate tunnel if there is a change in SD-WAN SLA or logic.  Example: ***DNS*** config system dns set interface-select-method sdwan end *** Central Management (fgfm tunnel) *** config system central-management set interface-select-method {auto |sdwan | specify} set interface <interface> end *** NTP *** config system ntp config ntpserver edit <id> set interface-select-method {auto | sdwan | specify} set interface <interface> next end end ***DHCP Proxy, Relay*** config system settings set dhcp-proxy-interface-select-method {auto | sdwan | specify} set dhcp-proxy-interface <interface> end config system interface edit <interface> set dhcp-relay-interface-select-method {auto | sdwan | specify} set dhcp-relay-interface <interface> *** Authentication (TACACs+, RADIUS,LDAP) *** config log tacacs+accounting setting set interface-select-method {auto | sdwan | specify} set source-ip <IP address> *** Logging (syslog, sflow, netflow) *** config system {netflow | sflow | vdom-netflow | vdom-sflow} set interface-select-method {auto | sdwan | specify} set interface <interface>     ***FortiGuard, FortiSandbox*** config system fortiguard | fortisandbox set interface-select-method sdwan end To enable SD-WAN for ping and traceroute: execute ping-options use-sdwan yes execute traceroute-options use-sdwan yes For example, 10.20.99.2 is the Firewall interface's IP address, traffic from it will be considered local-out traffic and by default, it does not follow the SD-WAN rule. If the 'use-sdwan' option is enabled, it will follow the SD-WAN rule:
