Technical Tip: The SNMP OIDs queries about NPU Uti...

FortiGate

FortiGate Next Generation Firewall utilizes purpose-built security processors and threat intelligence security services from FortiGuard labs to deliver top-rated protection and high performance, including encrypted traffic.

Article Id 388355

Description

This article describes that the SNMP polling for NPU OIDs does not return any value or display an error message 'No Such Object available on this agent at this OID'.

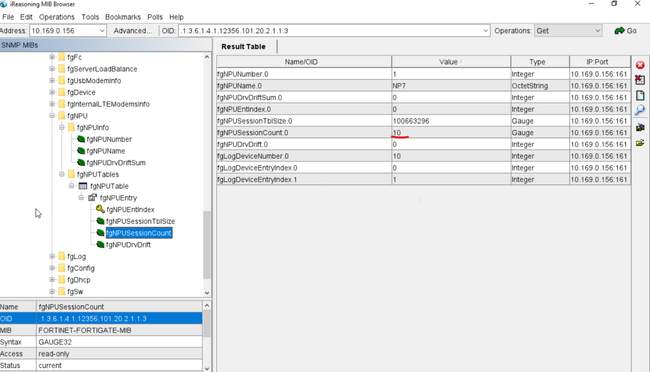

fgNPUTables => '1.3.6.1.4.1.12356.101.20.2',
fgNPUTable => '1.3.6.1.4.1.12356.101.20.2.1',
fgNPUEntry => '1.3.6.1.4.1.12356.101.20.2.1.1',
fgNPUEntIndex => '1.3.6.1.4.1.12356.101.20.2.1.1.1',
fgNPUSessionTblSize => '1.3.6.1.4.1.12356.101.20.2.1.1.2',
fgNPUSessionCount => '1.3.6.1.4.1.12356.101.20.2.1.1.3',

Scope

FortiGate v7.0, 7.2, 7.4.

Solution

The issue has been fixed in v7.4.4 or above. Refer to Resolved issues. Bug ID 984148.

140
