Technical Tip: Site-to-Site IPsec VPN Configuration with Certificate-Based Authentication.

[Bhuvanesh]

Description	This article describes how to configure a Site-to-Site IPsec VPN using certificate-based authentication on FortiGate firewalls. Instead of using a pre-shared key (PSK), the VPN peers authenticate each other using X.509 certificates signed by a trusted Root Certificate Authority (CA).
Scope	FortiGate.

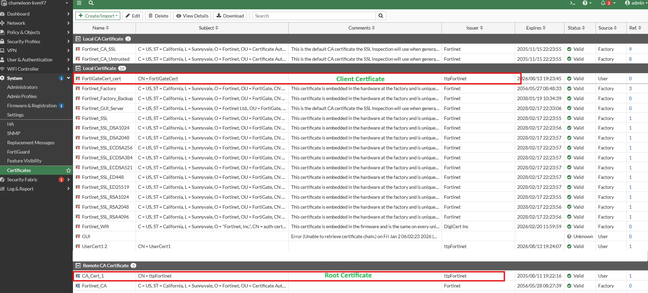

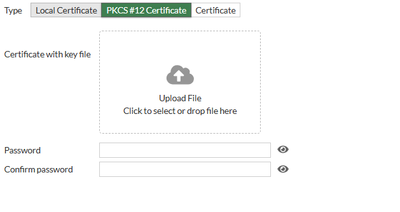

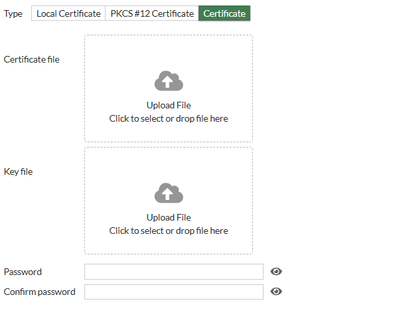

Solution	Step 1: Create or obtain the Root CA Certificate and then import it under Create/Import -> Remote Certificate.  Step 2: Obtain a child/server/client certificate with .p12 format and import it under Create/Import -> Certificate.  Choose with Certificate + key or Certificate with .p12 Format.  Here, the Root CA is tftpFortinet, and the Server/Entity/Client Certificate is FortiGateCert_cert. The same procedure must be followed on the peer device. Step 3. Configure IPSec tunnels on both the Firewalls, and then choose the authentication as Signature instead of Pre-Shared Key.  Technical Tip: How to set up IPsec VPN between two FortiGates (Using VPN Setup wizard and custom pro... Local Firewall: Choose the Entity Certificate as the imported Server Certificate, which has .p12 format  For the Peer Certificate, create a new PKI user, enter the required name, and select the imported Root CA.  All other configurations remain the same; only the authentication method should be changed from Pre-Shared Key to Signature. The same steps must be followed for the Remote Firewall.  Sample Output: Use the following CLI commands to verify tunnel status: IPSec using FortiGate default certificates: Troubleshooting Tip: IPSec tunnel with certificate-based authentication between two FortiGates
