| Description | This article explains how to push alert messages to the administrator when a MAC conflict is detected in an HA environment. |
| Scope |
FortiGate HA. |
| Solution |
Consider a scenario where one organization is configured in HA. This organization is connected with all other organizations in the same network through an ISP L2 Link. On that same network, L2 VPN is used for a banking service with all other organizations.
In this scenario, one organization is unaware of other organizations' HA configurations. As a result, a coincidence may result in having the same group ID and virtual cluster ID during HA configuration. This could possibly result in a duplicate MADaddress conflict, which can impact the network and bring down running services.
So to identify the issue as soon as possible, it is possible to automate MAC address conflict detection and notify the administrator with an alert email message.
When FortiGate in NAT mode is configured for the HA cluster, the FGCP assigns a different virtual MAC address to each primary unit interface. Each interface HA virtual MAC address is set according to the group ID. Exception being Management and HA heartbeat interfaces that are not assigned with virtual MAC addresses.
If any one of these interfaces is connected in the same broadcast domain using the same group ID with another FortiGate HA Cluster, a MAC address conflict can occur. To avoid the disruption caused by a conflict, it is recommended that each cluster in the same network and broadcast domain uses a unique group ID.
Refer to this link for information on troubleshooting a virtual MAC address conflict issue.
Display the Virtual MAC address of each interface using following commands:
# diagnose hardware deviceinfo nic <intf>
# get hardware nic <intf>
# get hardware nic wan ... Current_HWaddr 00:09:0f:09:00:00 ← Virtual MAC Permanent_HWaddr 04:d5:90:ee:91:fa ...
# show system interface wan # config system interface edit "wan" set ip 172.16.16.101 255.255.255.0 next end
To quickly detect neighboring MAC changes, enable the neighbor event command in the log settings through the CLI:
# config log setting set neighbor-event enable end
When enabled, a new log message is recorded every time a MAC address entry is added to the ARP table, as well as when a MAC address is removed.
Afterwards, configure the stitches to alert the administrator whenever a neighbor event is triggered.

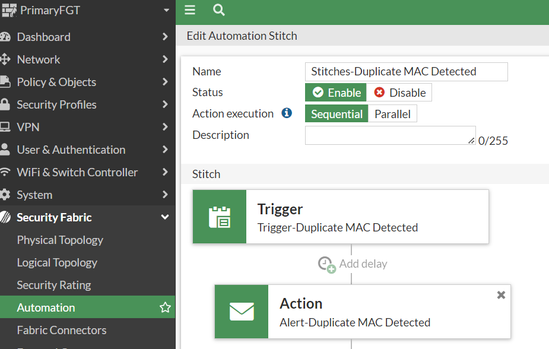

Stitches
In the GUI:
In the CLI:
Run the following:
# config system automation-stitch edit "Stitches-Duplicate MAC Detected" set trigger "Trigger-Duplicate MAC Detected" # config actions edit 1 set action "Alert-Duplicate MAC Detected" set required enable next end next end

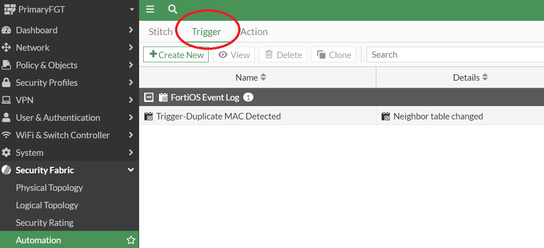

Triggers
In the GUI:
In the CLI:
Run the following:
# config system automation-trigger (automation-trigger) # edit "Duplicate MAC Detected" (Duplicate MAC De~ted) # show # config system automation-trigger edit "Duplicate MAC Detected" set event-type event-log set logid 51000 # config fields edit 1 set name "msg" set value "MAC address 00:09:0F:09:00:00 is added to neighbor table" next end next end
Use the filter field by mapping the interface MAC address of the L2 ISP link. In this case, the WAN interface MAC address.
# get hardware nic wan ….. Current_HWaddr 00:09:0f:09:00:00 Permanent_HWaddr 04:d5:90:ee:91:fa …..

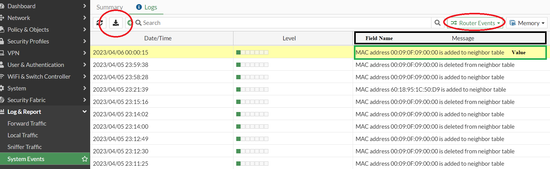

To view the router event log file, go to System Events -> Router Events and select the Download button. View the log in notepad.
Example:
[ msg="MAC address 00:09:0F:09:00:00 is added to neighbor table"]

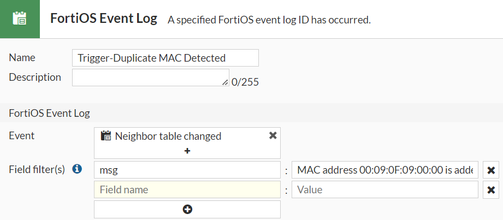

When assigning 'Field name', use 'msg' as the value. When assigning the trigger 'Value', enter the MAC address of the ISP L2 connected interface link.

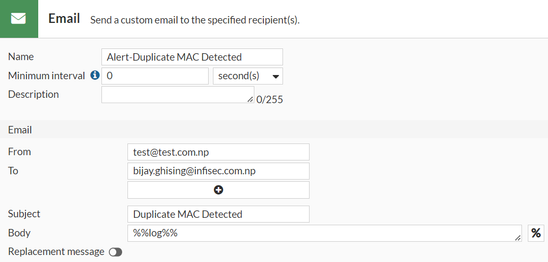

To set up the automatic sending of an alert message, provide the administrator email in the email address field:
Action
# config system automation-action edit "Alert-Duplicate MAC Detected" set action-type email set email-to "admin@myorg.com" set email-from "test@test.com" set email-subject "Duplicate MAC Detected" next end

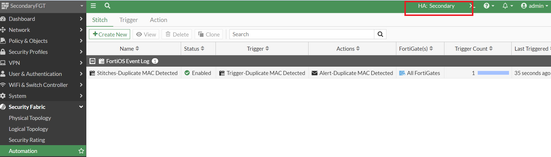

When a duplicate MAC address is detected from a neighboring IP, the automation stitches are triggered. For alert messages, a notification will be sent through the secondary FortiGate of an HA cluster.

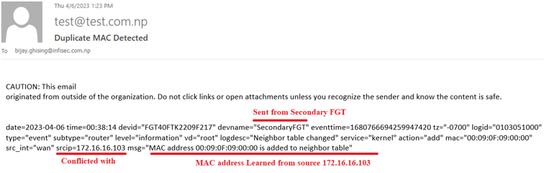

The IP address that the virtual MAC address conflicts with will be provided.
Related document: |
