Technical Tip: Packet processing with flow rule

[wdeloraine_FTNT]

Description	This article describes how packets are processed when they match a flow rule.
Scope	FortiGate-6000F, 7000E and 7000F series.

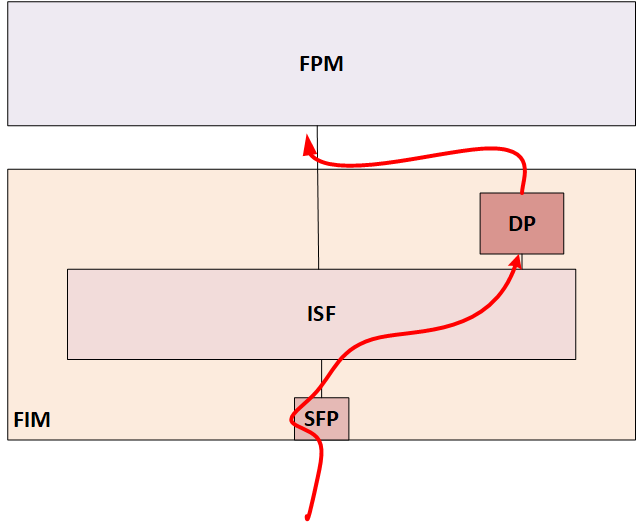

Solution	On chassis-based FortiGate, a packet eligible for load-balancing goes through to the FPM in this order: Front port. ISF. DP (distribution processor). FPM (via the ISF). The packet goes straight to the FPM when the corresponding traffic pattern is caught by a flow rule. This behavior could be useful during a troubleshooting session when a load balancing problem is suspected. Once the flow rule matches the problematic traffic, the chassis will act as a regular FortiGate. It means that no more load-balancing features will be involved. Related document: Load balancing and flow rules
