Technical Tip: Packet Capture via GUI using an admin with Read-Write permission on Packet Capture only

[krodriguez]

Description	This article describes how to do packet capture via GUI using an admin with Read-Write permission on Packet Capture only. Starting FortiOS v7.4 and above, when a FortiGate that is managed by FortiManager (Login Mode: Read-Only), for an admin with Read-Write permission on packet capture only to work on the GUI, an admin user with Read-Write permission (at least on system configuration and packet capture) needs to save the packet capture settings.
Scope	FortiOS v7.4 and above.

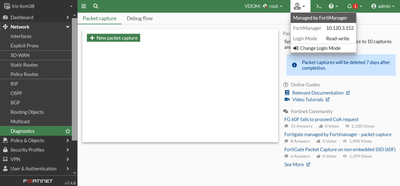

Solution	Admin pcap-admin will be assigned to the admin profile pcap_profile that has Read-Write only permission on packet capture. Log in to FortiGate using an admin with Read-Write permission and Login Mode: Read-Write (default admin with super_admin permission will be used in this KB article). Go to Network -> Diagnostics -> New Packet Capture. Set the interface and filters as intended. When Saving, select either Start capture or Save settings for later.                                                            Packet capture saved. Log in using pcap-admin. Packet capture that is configured/saved by Read-Write admin is now available.
