| Solution |
The color codes are shown below:
- 1 is black.
- 2 is blue.
- 3 is green.
- 6 is red and so on.

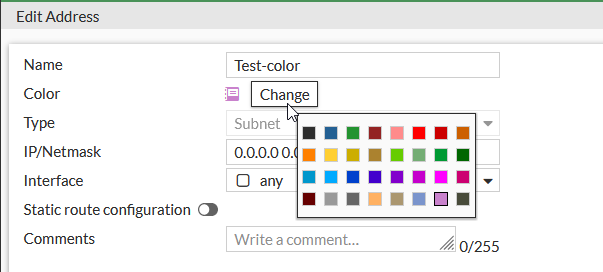

The below can be found in the FortiGate GUI itself under the address object.
But, when performing bulk configuration from the CLI, it is helpful to know which color code is matching with which colors.

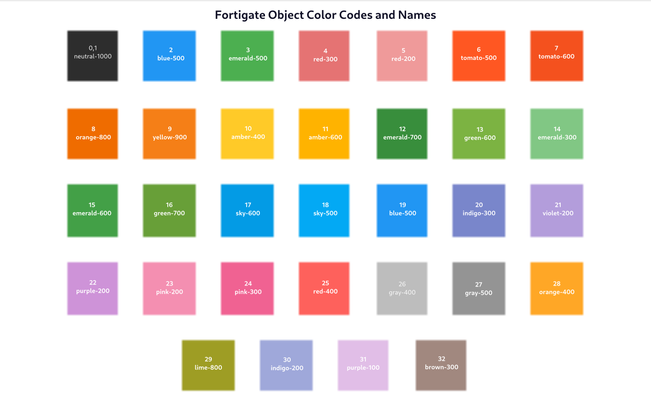

The following diagram shows the codes and color names that are available.
Sample CLI configuration for each color code:
config firewall address
edit "COLOR-0"
set comment "#2D2D2D,neutral-100"
set color 0
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-1"
set comment "#2D2D2D,neutral-100"
set color 1
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-2"
set comment "#2196F3,blue-500"
set color 2
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-3"
set comment "#4CAF50,emerald-500"
set color 3
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-4"
set comment "#E57373,red-300"
set color 4
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-5"
set comment "#EF9A9A,red-200"
set color 5
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-6"
set comment "#FF5722,tomato-500"
set color 6
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-7"
set comment "#F4511E,tomato-600"
set color 7
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-8"
set comment "#F4511E,orange-800"
set color 8
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-9"
set comment "#F57F17,yellow-900"
set color 9
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-10"
set comment "#FFCA28,amber-400"
set color 10
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-11"
set comment "#FFB300,amber-600"
set color 11
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-12"
set comment "#388E3C,emerald-700"
set color 12
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-13"
set comment "#7CB342,green-600"
set color 13
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-14"
set comment "#81C784,emerald-300"
set color 14
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-15"
set comment "#43A047,emerald-600"
set color 15
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-16"
set comment "#689F38,green-700"
set color 16
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-17"
set comment "#039BE5,sky-600"
set color 17
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-18"
set comment "#03A9F4,sky-500"
set color 18
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-19"
set comment "#2196F3,blue-500"
set color 19
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-20"
set comment "#7986CB,indigo-300"
set color 20
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-21"
set comment "#B39DDB,violet-200"
set color 21
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-22"
set comment "#CE93D8,purple-200"
set color 22
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-23"
set comment "#F48FB1,pink-200"
set color 23
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-24"
set comment "#F06292,pink-300"
set color 24
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-25"
set comment "#FE615C,red-400"
set color 25
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-26"
set comment "#BDBDBD,gray-400"
set color 26
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-27"
set comment "#949494,gray-500"
set color 27
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-28"
set comment "#FFA726,orange-400"
set color 28
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-29"
set comment "#9E9D24,lime-800"
set color 29
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-30"
set comment "#9FA8DA,indigo-200"
set color 30
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-31"
set comment "#E1BEE7,purple-100"
set color 31
set subnet 255.255.255.255 255.255.255.255
next
edit "COLOR-32"
set comment "#A1887F,brown-300"
set color 32
set subnet 255.255.255.255 255.255.255.255
next
end
|
