Technical Tip: Monitoring active WebSocket connections using the CLI

[Ted]

Description	This article describes the new diagnostic CLI command, which helps administrators quickly view active WebSocket connections on a FortiGate device. The command provides a concise snapshot of current WebSocket sessions, including source IPs and connection timestamps, which is useful for troubleshooting GUI/API real‑time features, FortiView live updates, and other components that rely on WebSocket transport.
Scope	FortiGate.

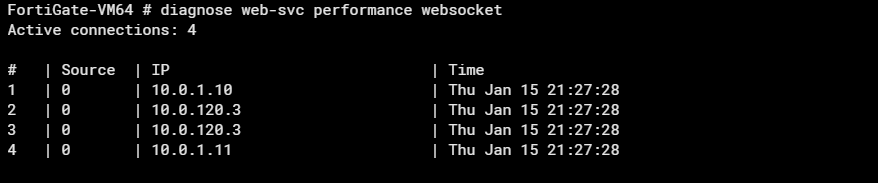

Solution	The diagnose web-svc performance command now includes an additional sub-option websocket to dump statistics of active WebSocket connections currently managed by the system. Parent command help: FortiGate-VM64 # diagnose web-svc performance metrics Performance metrics. websocket Dump active WebSocket connections. Example output: FortiGate-VM64 # diagnose web-svc performance websocket Active connections: 4 # | Source | IP | Time 1 | 0 | 10.0.120.3 | Thu Jan 15 21:29:51 2 | 0 | 10.0.1.11 | Thu Jan 15 21:29:51 3 | 0 | 10.0.120.3 | Thu Jan 15 21:29:51 4 | 0 | 10.0.1.10 | Thu Jan 15 21:29:51 The output provides the total count of active WebSocket connections, the associated source indices, the client IP addresses, and the corresponding connection timestamps. A user can utilize this command when troubleshooting WebSocket-related performance or connectivity issues in FortiGate administrative web sessions or diagnostic environments. It helps to identify which clients are maintaining active WebSocket channels.
