Technical Tip: Modem private IPs cannot be accessed through the PPPoE interface, possible workarounds

[JNDias]

Description	This article explains how to work around the impossibility of accessing a private IP on the WAN side with PPPoE. This limitation exists because WANs with PPPoE cannot have a secondary IP.
Scope	FortiGate, WAN with PPPoE. Tested on v6.4.8 build1914 | v6.4.10 build2000.

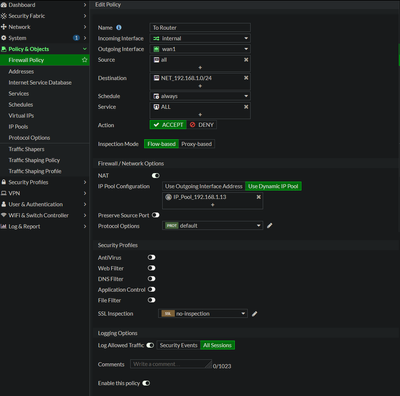

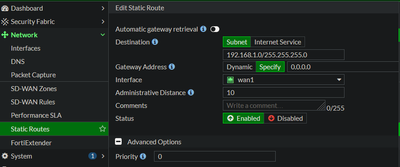

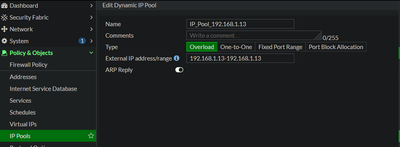

Solution	Adapt the configuration to limit the source in the rule so the internal clients will be able to reach that private network. 1) Create a Static Route for the network: Go to Network -> Static Routes and select 'Create New'. 2) Create an IP pool: Go to Policy & Objects -> Virtual IPs, select 'Create New' -> 'IP Pools'. 3) Create a Firewall Policy: Alternatively, create the policies in the CLI with the following commands: # config router static     edit 1         set dst 192.168.1.0 255.255.255.0         set device "wan1"     next end # config firewall ippool     edit "IP_Pool_192.168.1.13"         set startip 192.168.1.13         set endip 192.168.1.13     next end # config firewall policy     edit 1         set name "To Router"         set srcintf "internal"         set dstintf "wan1"         set srcaddr "all"         set dstaddr "NET_192.168.1.0/24"         set action accept         set schedule "always"         set service "ALL"         set logtraffic all         set ippool enable         set poolname "IP_Pool_192.168.1.13"         set nat enable     next end Result: internal in 10.16.4.56 -> 192.168.1.5: icmp: echo request wan1 out 192.168.1.13 -> 192.168.1.5: icmp: echo request eth0 out 192.168.1.13 -> 192.168.1.5: icmp: echo request wan1 in 192.168.1.5 -> 192.168.1.13: icmp: echo reply
