Technical Tip: Local-in policies may be missing and not working after upgrading to v7.4.6

[ChrisTan]

Description	This article describes how some local-in policies are missing after upgrading to v7.4.6 or later because of new features.
Scope	FortiGate v7.4.6, v7.6.1.

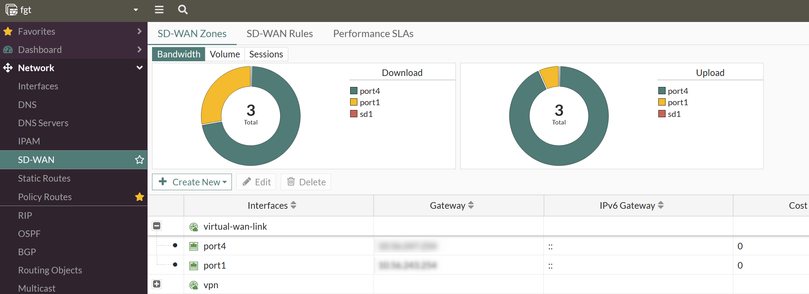

Solution	In the previous version: fgt # config firewall local-in-policy fgt (local-in-policy) # edit 0 new entry '0' added fgt (0) # set intf * <string> Please input string value. any Match any interface in the virtual domain. new1 zone port1 interface  <----- SD-WAN member. port2 interface port3 interface port4 interface  <----- SD-WAN member. The local-in policy interface behavior is different from the ipv4 policy. In the local-in policy, the SD-WAN member can be selected as the source interface instead of the SD-WAN zone. After upgrading to v7.4.6 and v7.6.1, some config errors may occur: fgt # diagnose debug config-error-log read >>> "set" "intf" "port1" @ root.firewall.local-in-policy.1:value parse error (error -651) >>> "next" @ root.firewall.local-in-policy.1:failed command (error 1) The local-in policy: fgt # config firewall local-in-policy fgt (local-in-policy) # edit 0 new entry '0' added fgt (0) # set intf * <string> Please input string value. any Match any interface in the virtual domain. new1 zone virtual-wan-link sdwan    <--------- Ports 1 and 4 are no longer available and have been replaced by the virtual-wan-link SD-WAN zone. All interface members of an SD-WAN zone and ZONE cannot be referenced individually on the local-in policy. If the local-in-policy is missing or shows empty value for 'intf' setting, recreate the policy and assign them to appropriate SD-WAN zone. Related documents: Known issues Unable to create local-in-policy - 'node_check_object fail!'
