Description
The IP Definitions Database (IPDB, previously known as the IRDB) is merged into the Internet Service Database (ISDB, also known as FFDB).
Botnet C&C IP blocking now uses the ISDB as a source.
Scope
FortiGate.
Solution
In the License Information table.

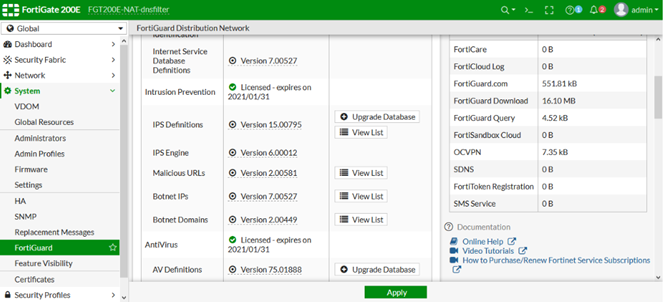

Go to System -> FortiGuard, 'Botnet IPs' and 'Internet Service Database Definitions' have the same database version.
Botnet IPs can be diagnosed with the following CLI command.
diagnose sys botnet-ip {hit | list | find | flush}
To see the current botnet hits in the firewall:
oxygen-kvm17 # diagnose sys botnet-ip hit
The number of hit entries: 0
To see the whole list of botnet IP entries:
oxygen-kvm17 # diagnose sys botnet-ip list
0. proto=TCP, ip=1.0.133.100-1.0.133.100, port=51327-51327, botnet=7630624, hit_count=0
.
.
.
3705. proto=TCP, ip=223.165.243.209-223.165.243.209, port=47205-47205, botnet=7630624, hit_count=0
To see and find an IP entry from the list, follow the syntax below:
diagnose sys botnet-ip find <IP> <Port> <Protocol>
oxygen-kvm17 # diagnose sys botnet-ip find 223.165.243.209 47205 6
proto=TCP, ip=223.165.243.209, port=47205, botnet=7630624 is listed in the botnet database.
proto=TCP, ip=223.165.243.209, port=47205, botnet=7630624 is listed in the botnet database.
To flush the botnet IP entry hit count data:
diagnose sys botnet-ip flush
When updating object versions from the CLI, Botnet IPs are not listed.
Internet-service Database Apps and Internet-service Database Maps are listed, and show the version for Botnet IPs and Internet Service Database Definitions.
diagnose autoupdate version
......
Internet-service Database Apps
---------
Version: 7.00528
Contract Expiry Date: n/a
Last Updated using scheduled update on Fri Mar 13 12:48:18 2020
Last Update Attempt: Fri Mar 13 16:48:10 2020
Result: No Updates
Internet-service Database Maps
---------
Version: 7.00528
Contract Expiry Date: n/a
Last Updated using scheduled update on Fri Mar 13 12:48:18 2020
Last Update Attempt: Fri Mar 13 16:48:10 2020
Result: No Updates
......
......
Internet-service Database Apps
---------
Version: 7.00528
Contract Expiry Date: n/a
Last Updated using scheduled update on Fri Mar 13 12:48:18 2020
Last Update Attempt: Fri Mar 13 16:48:10 2020
Result: No Updates
Internet-service Database Maps
---------
Version: 7.00528
Contract Expiry Date: n/a
Last Updated using scheduled update on Fri Mar 13 12:48:18 2020
Last Update Attempt: Fri Mar 13 16:48:10 2020
Result: No Updates
......
