| Description | This article describes the method to generate ICMP unreachable logs and the policy matching. |
| Scope | FortiGate. |
| Solution |
To generate ICMP log message:
config log setting set log-invalid-packet enable end
In FortiOS v7.4.X and above, the command shown above has been replaced with the following:
config log setting set extended-log enable end

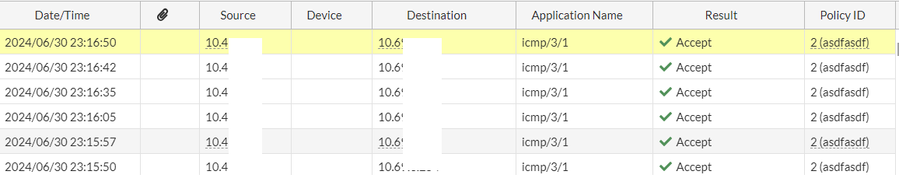

The ICMP log is generated as below:

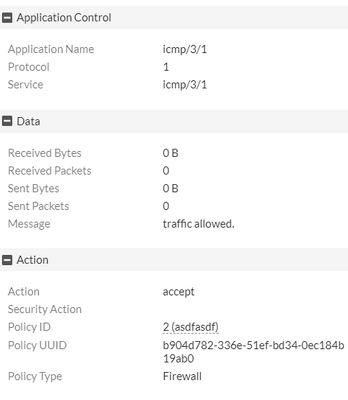

The log matched policy ID 2 even though the source field does not match.

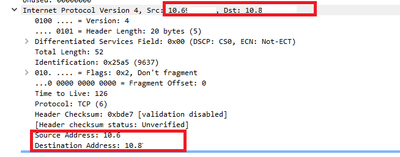

Policy ID 2 allowed the ICMP unreachable packet because the encapsulated IP header matches the existing session.
 |
