Article Id 206008
Description This article describes how to check the DNS latency for configured and dynamically retrieved server detail.
Scope FortiOS 7.0.2 onwards,
Solution

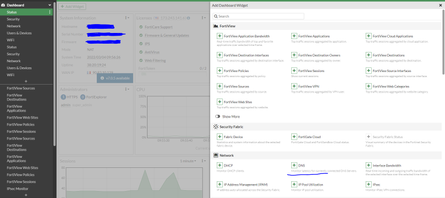

1) Go to Dashboard -> Status and select 'Add Widget'.

2) In the Network section, select the '+' beside DNS.



3) Select 'Add Widget' and select 'Close'. The DNS widget is displayed in the dashboard.






4) Hover over a server address to view the tooltip that displays more information.

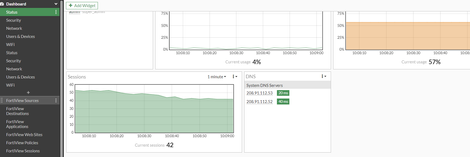

Final outcome.PNG
