| Description | This article describes how to set proxy-re-authentication-time on FortiGate to specify the time limit that users must re-authenticate again on FortiGate. |
| Scope | FortiGate. |
| Solution |
By default, proxy-keep-alive-mode is set to 'session' in global settings, and proxy-re-authentication-time is a hidden command line that is available only when proxy-keep-alive-mode is set to 're-authentication' as follows in global settings:
Before FortiOS version 7.0:
config system global set proxy-re-authentication-mode absolute end
After FortiOS version 7.0 and above, the command have been changed to:
config system global

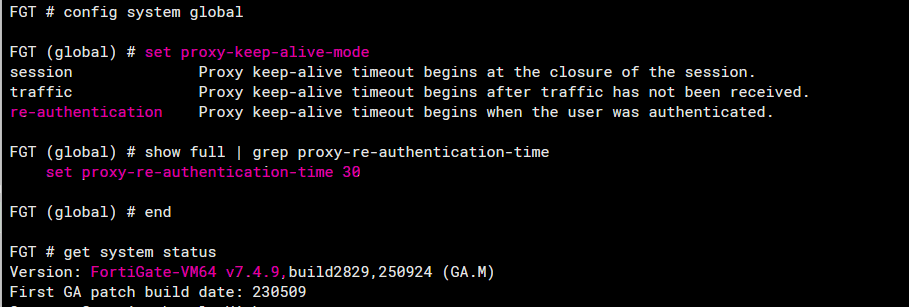

Here is the screenshot from FortiOS version 7.4.9:
The feature 'proxy-keep-alive-mode' controls whether users must re-authenticate after a session is closed, traffic has been idle, or from the point at which the user was authenticated.
Here are the steps to trigger re-authentication on FortiGate using above authentication setting:
Note: The re-authentication steps can be checked for any websites - the domains provided above are just examples.
When proxy-keep-alive-mode is set to re-authentication, after 'proxy-re-authentication' timer reached the timeout value, the next HTTP request from the user from the same IP will be required to authenticate again even if there is any ongoing session or if there is any ongoing traffic from/to the user with the same IP.
The feature proxy-re-authentication-time can be set from 1 to 86400 seconds, by default this option is set to 30 seconds.
