Technical Tip: How to configure Subnet-Based Syslog filtering on FortiGate

[parteeksharma]

Description	This article describes how to configure subnet-based syslog filtering on FortiGate devices, allowing users to filter traffic logs based on specific source or destination IP addresses.
Scope	FortiGate.

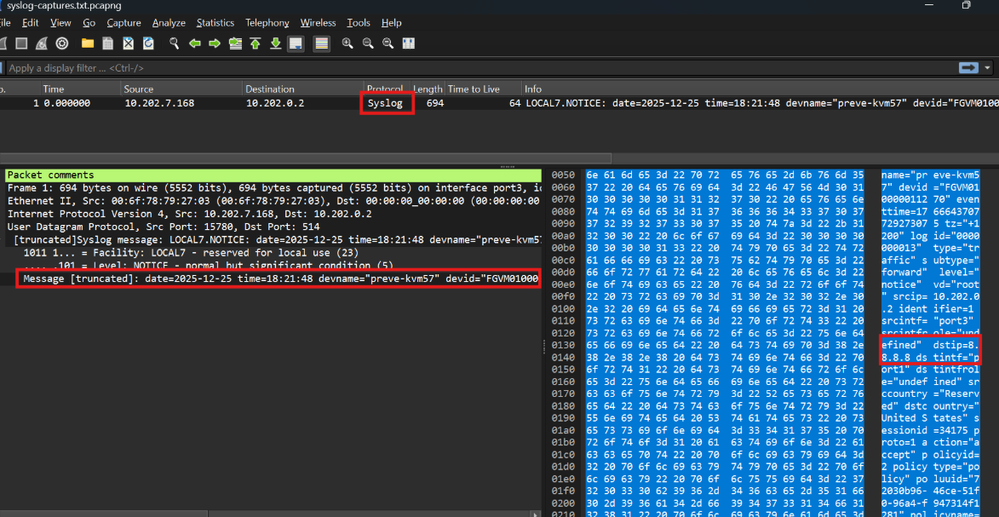

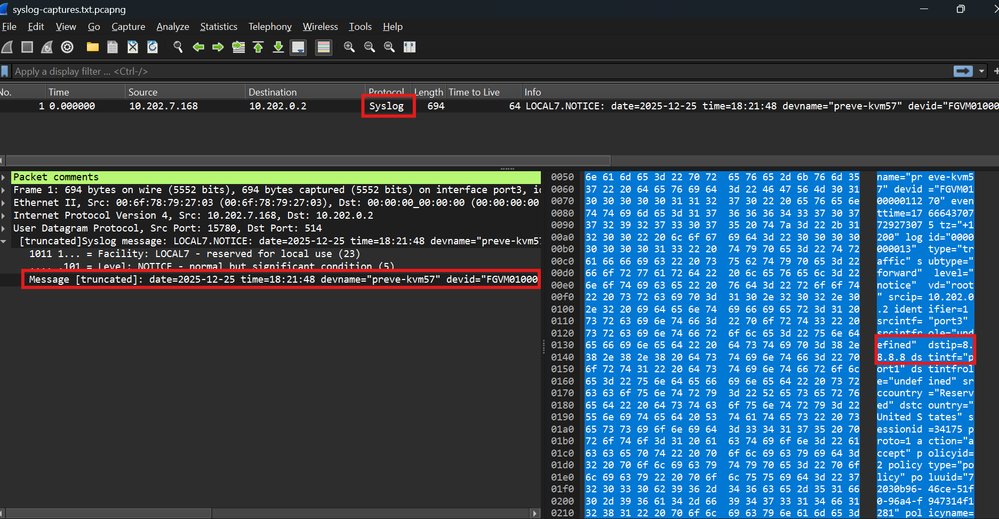

Solution	To configure subnet-based syslog filtering on FortiGate, follow the steps below: Configure the syslog server using CLI: config log syslogd setting     set status enable     set server 'x.x.x.x'    <----- Syslog server IP address.     set mode udp     set port 514 end Configure the subnet-based filter using CLI: config log syslogd filter     config free-style         edit 1             set category traffic             set filter '(srcip 8.8.8.0-8.8.8.254) or (dstip 8.8.8.0-8.8.8.254)'             set filter-type include         next     end end Capturing syslog traffic on the firewall shows that only logs matching the configured filters are forwarded to the syslog server: Once the logs are forwarded to the syslog server, the source or destination IP addresses can be verified to confirm that the received logs match the filters configured on the firewall: Free-style expression can be configured as follows: Enter a free-style expression. For example: "srcip 172.16.1.1" "(srcip 172.16.1.1) or (dstip 172.16.1.2)" "(srcip 172.16.1.1) and (dstip 172.16.1.2)" "((srcip 172.16.1.1) or (dstip 172.16.1.2)) and (dstport 80 443 50-60)" Note: To forward a specific subnet of IP addresses, the entire network range of IP addresses should be defined in the filter. This configuration will forward traffic logs with source or destination IP addresses within the 8.8.8.0/24 subnet to the specific syslog server.
