Article Id 366512

Description

This article describes how to see the configuration changes on FortiGate CLI when it is pushed from FortiManager.

Scope

FortiGate.

Solution

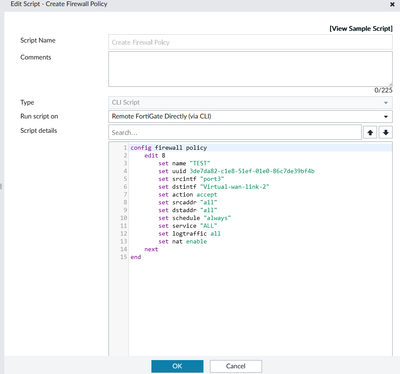

In the below example, a firewall policy configuration is pushed from FortiManager.

To record the configuration change, run the below commands on FortiGate CLI:

diagnose debug reset
diagnose debug cli 7
diagnose debug enable

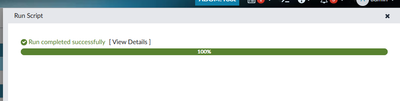

Below is the output:

To disable the debug, use the following commands:

diag debug disable

diag debug reset

Note:

This will NOT capture the TCL script push from FortiManager because the TCL script uses SSH instead of the regular FGFM tunnel to connect to the FortiGate (which is the case of config/policy/CLI Script push).
