Technical Tip: How to activate FortiToken on a FortiGate in an air-gapped environment

[johnathan]

Description	This article describes how to set up a FortiToken for 2FA when the FortiGate is air-gapped.
Scope	FortiGate.

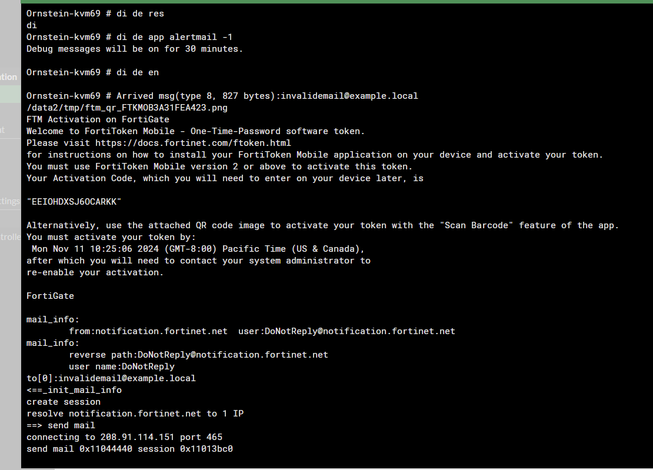

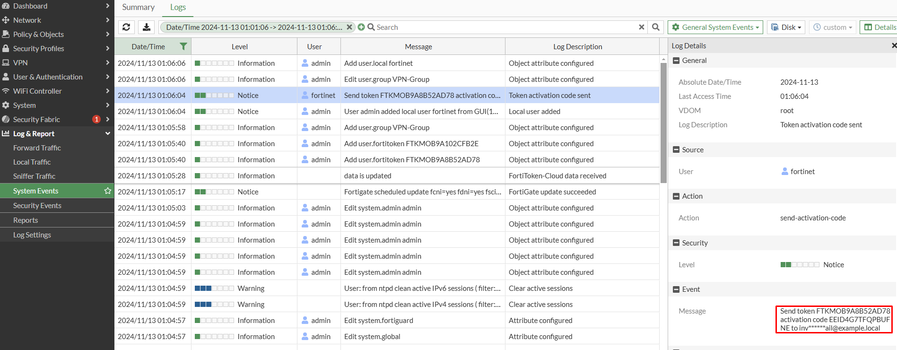

Solution	In order to activate the FortiToken, the activation code is needed. This is generally sent to users via email, but if the FortiGate is air-gapped (no internet), this is generally not possible. However, it is possible to see the contents of the email the FortiGate attempts to send out, even if there is no internet connection. For the user, configure an invalid email address. Technically it does not matter what is put here, as long as the FortiGate takes it.   Run the following debug commands to see the contents of the email the FortiGate sends out: diagnose debug reset diagnose debug console timestamp enable diagnose debug application alertmail -1 diagnose debug enable To stop the debug, run the following commands:    diagnose debug disable    diagnose debug reset Here is the output after sending the email. The activation code is visible and this can be put into the FortiToken application.   The activation code can also be obtained from the System Event logs as FortiGate records the action and content of FortiToken activation sent to the end-user:
