This article describes that vdom-link type ppp can be used without IP address.
FortiGate v. 6.4.8.
Vdom-link is internal interface communication, so the traffic does not need to leave FortiGate in order to communicate between VDOM.
There are two types of vdom-link:
1) Vdom-link type ppp (default).
2) Vdom-link type Ethernet <----- Not covered in this article.

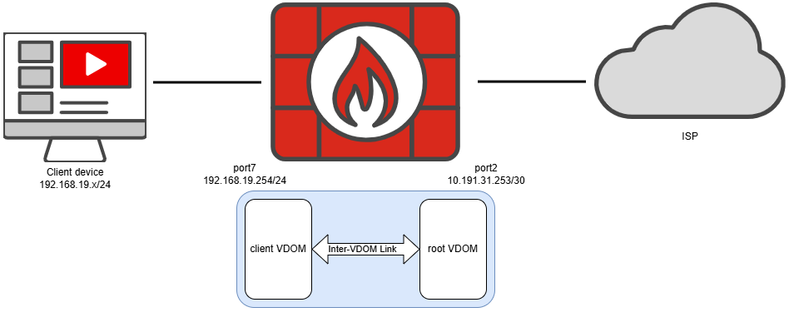

Diagram:
Interface vdom-link settings:
FGT1 (global) # show system interface vdom_link0
config system interface
edit "vdom_link0"
set vdom "root"
set allowaccess ping https ssh snmp
set type vdom-link
set snmp-index 16
next
end
FGT1 (global) # show system interface vdom_link1
config system interface
edit "vdom_link1"
set vdom "client_vdom"
set allowaccess ping https ssh snmp
set type vdom-link
set snmp-index 17
next
end
Static route at root VDOM:
FGT1 (root) # show router static
config router static
edit 4
set gateway 10.191.31.254 <----- Route to internet.
set device "port2"
next
edit 5
set dst 192.168.19.0 255.255.255.0 <----- Route to Windows user.
set device "vdom_link0"
next
end
Firewall policy at root VDOM:
FGT1 (root) # show firewall policy
config firewall policy
edit 4
set name "internet"
set uuid 301235ba-683f-51ed-ac4a-ad2b7cd2dd8f
set srcintf "vdom_link0" <----- Interface to client_vdom.
set dstintf "port2" <----- Interface to internet.
set srcaddr "all"
set dstaddr "all"
set action accept
set schedule "always"
set service "ALL"
set logtraffic all
set logtraffic-start enable
set nat enable
next
Static route at client_vdom:
FGT1 (client_vdom) # show router static
config router static
edit 1
set device "vdom_link1" <----- Default route via vdom_link1.
next
end
Firewall policy at client_vdom:
FGT1 (client_vdom) # show firewall policy
config firewall policy
edit 1
set name "internet_client_vdom"
set uuid b3aa3496-683e-51ed-8371-8066bdd0f317
set srcintf "port7" <----- Interface where windows user is located.
set dstintf "vdom_link1" <----- Interface to root VDOM.
set srcaddr "all"
set dstaddr "all"
set action accept
set schedule "always"
set service "ALL"
set logtraffic all
set logtraffic-start enable
next
end
Ping test from user:
Conclusion:
- vdom-link type ppp does not need IP address to work.
- With this implementation - it is possible to reserve the IP usage.
