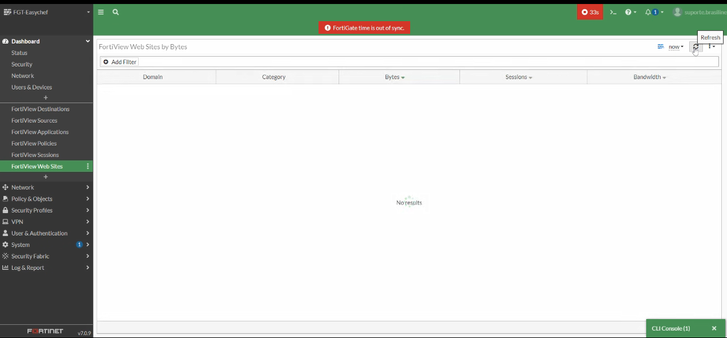

FortiView websites does not display information and there is a web filter profile according to the guide: Viewing top websites and sources by category
Verify that the FortiGate model has a disk available:
FortiGate-60E # get system status
Version: FortiGate-60E v7.0.9,build0444,221121 (GA.M)
Firmware Signature: certified
Virus-DB: 91.01175(2023-03-06 07:26)
Extended DB: 91.01175(2023-03-06 07:26)
AV AI/ML Model: 2.09976(2023-03-06 04:45)
IPS-DB: 6.00741(2015-12-01 02:30)
IPS-ETDB: 0.00000(2001-01-01 00:00)
APP-DB: 23.00505(2023-03-02 01:13)
INDUSTRIAL-DB: 6.00741(2015-12-01 02:30)
IPS Malicious URL Database: 4.00564(2022-12-18 14:29)
Serial-Number:
BIOS version: 05000012
System Part-Number: P18816-03
Log hard disk: Not available <-----
Hostname: FGT-Easychef
Private Encryption: Disable
Operation Mode: NAT
Current virtual domain: root
Max number of virtual domains: 10
Virtual domains status: 1 in NAT mode, 0 in TP mode
Virtual domain configuration: disable
FIPS-CC mode: disable
Current HA mode: standalone
Branch point: 0444
Release Version Information: GA
System time: Mon Mar 6 13:11:10 2023
Last reboot reason: warm reboot
get hardware status
Model name: FortiGate-60E
ASIC version: SOC3
ASIC SRAM: 64M
CPU: ARMv7
Number of CPUs: 4
RAM: 1866 MB
EMMC: 3662 MB(MLC) /dev/mmcblk0
Hard disk: not available
USB Flash: not available
Network Card chipset: FortiASIC NP6LITE Adapter (rev.)
It is a requirement that the FortiGate model has a disk to display results in Fortiview-WebSites.
Once the requirement has been checked and the disk is available, the following reference document can be used to view the website results in Fortiview.
Related article:
Technical Tip: Monitoring website bandwidth utilization
|
