Description This article describes why FortiGate is forwarding DNS queries for blocking or banning domains to the DNS servers.
Scope FortiGate DNS.
Solution

There are instances that the FortiGate is sending DNS queries to the configured DNS servers for a block or ban domain.



In this example, from the packet sniffer, it s possible to see that the FortiGate is querying the DNS server 10.201.2.41 for bansite.com.

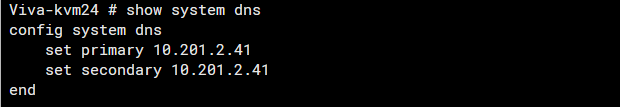

Below is the FortiGate DNS setting:







Below is the Wireshark output:






This is an expected behavior if a FQDN address object has been configured in the firewall.



fqdn object gui.PNG



fqdn object.PNG



The FortiGate will query the DNS server to resolve the configured FQDN.
