Description
This article describes how to switch from NAT to transparent mode without any errors.
Scope
FortiGate.
Solution
Error 1: When switching from NAT mode to Transparent mode, and 'FortiLink' has already been configured, the following error appears:
FGT # config sys settings
FGT (settings) # set opmode transparent
Cannot change to Transparent mode because this vdom contains managed switches and switchctl-vlans.
Please clear managed-switches, disable fortilink and retry.
node_check_object fail! for opmode transparent
value parse error before 'transparent'
Command fail. Return code -7610
To change the operation mode of the unit, use the following command:
FGT (fortilink) # show
config system interface
edit "fortilink"
set vdom "root"
set allowaccess ping fabric
set status down
set type aggregate
set lldp-reception enable
set lldp-transmission enable
set snmp-index 14
next
end
Even after disabling the FortiLink interface, the same error message should still appear. If FortiLink has any referenced configurations, remove them using the following CLI commands:
show | grep -i fortilink -f
config system interface
edit "fortilink" <---
set vdom "root"
set fortilink enable <---
set ip 10.10.225.1 255.255.255.0
set allowaccess ping fabric https
set type aggregate
set lldp-reception enable
set lldp-transmission enable
set snmp-index 8
next
end
config system ntp
set ntpsync enable
set server-mode enable
set interface "fortilink" <---
end
config system dhcp server
edit 1
set ntp-service local
set default-gateway 10.10.225.1
set netmask 255.255.255.0
set interface "fortilink" <---
set vci-match enable
set vci-string "FortiSwitch" "FortiExtender"
next
end
config switch-controller storm-control-policy
edit "auto-config"
set description "storm control policy for fortilink-isl-icl port" <---
set storm-control-mode disabled
next
end
References can also be checked using the following cmdb command:
diagnose sys cmdb refcnt show system.interface.name fortilink
entry used by table system.dhcp.server:id '1'
entry used by child table interface:interface-name 'fortilink' of complex system.ntp:interface.interface-name
Disabling the NTP server which lists FortiLink interface (or switch interface to any other interface available):
config sys ntp
FortiGate(ntp) # show
config system ntp
set ntpsync enable
set server-mode enable
set interface "fortilink"
end
(ntp) # set server-mode disable
(ntp) # end
Delete the DHCP server entry using the following commands:
config sys dhcp server
(server) # delete 1
(server) # end
Disable FortiLink interface:
config sys interface
(interface) # edit fortilink
(fortilink) # set stat down
(fortilink) # end
On FortiGate-VM, it can be desired to delete the FortiLink interface as well:
config sys interface
(interface) # delete fortilink
(interface) # end
Try to change the mode to Transparent mode using the following CLI commands:
config sys settings
(settings) # set opmode transparent
(settings) # set manageip 10.12.12.12/24
(settings) # end
Changing to TP mode
Done.

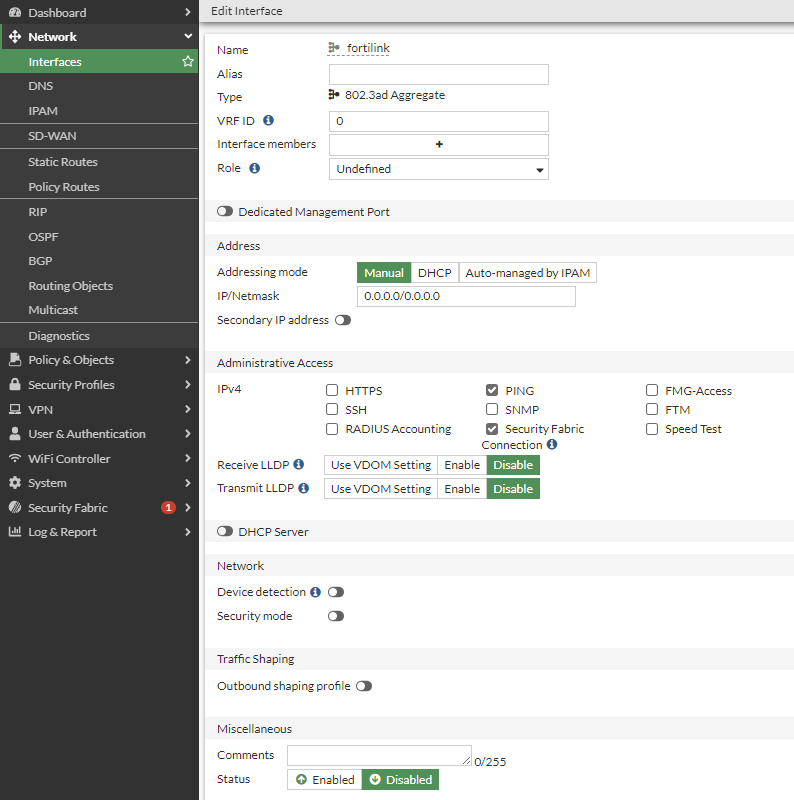

Go to System -> Settings -> NTP. Also, on the aforementioned FortiLink configuration, unset the IP address and disable all configurations related to FortiLink as shown in the screenshot below.
Error 2: Another error that can be encountered when objects are referenced:
FGT # config sys settings
FGT (settings) # set opmode transparent
Paired npu0_vlinks with up status in the same VDOM(TP mode) are not allowed
node_check_object fail! for opmode transparent
value parse error before 'transparent'
Command fail. Return code -651
The reference can be any interface. In this case, the issue is on the vdom link. Disable the VDOM links by going to the respective link:
FGT # config system interface
edit <interface>
set status disable
next
end
Below is the expected result without any error message:
FGT # config system settings
FGT (settings) # show full-configuration | grep opmode
set opmode nat
FGT (settings) # set opmode transparent
FGT (settings) # set manageip <IP address/mask>
FGT (settings) # end
Output:
FGT # config system settings
FGT (settings) # show full-configuration | grep opmode
set opmode transparent
FGT (settings) # end
