Technical Tip: Enhanced MAC VLAN support with HA setup

[akileshc]

Description	This article describes the support of EMAC in HA setup.
Scope	FortiGate.

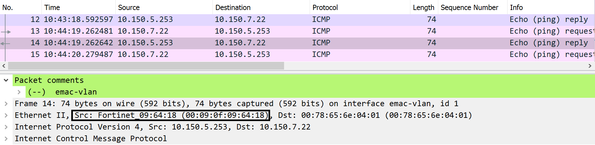

Solution	The enhanced MAC VLAN is handled as a physical interface in high availability (HA) deployments.  It will be assigned a unique physical interface ID, and its MAC table is synced with the slaves in the same HA cluster. The virtual MAC address is calculated using a standard algorithm, similar to any other physical interface in the cluster. CLI Syntax: config system interface     edit "emac-vlan"         set vdom "root"         set ip 10.150.5.253 255.255.240.0         set allowaccess ping         set type emac-vlan         set snmp-index 30         set interface "dmz"         set vlanid 150     next end diagnose hardware deviceinfo nic emac-vlan Description EMacvlan Ethernet driver v1.0 System_Device_Name emac-vlan Lower_Device_Name dmz Current_HWaddr 00:09:0f:09:64:18 <----- Traffic Egress/Ingress with this MAC. Permanent_HWaddr 76:4c:a5:a6:80:f4 State up Link up npudev_oid 64 macvlan_id 0 vlan_id 150 learn_mac no mode 2 Note: If an interface is used in an enhanced MAC VLAN, it should not be used for anything else, including management, HA heartbeat, or Transparent VDOMs, and the physical interface that is being utilized by an EMAC VLAN interface cannot be used in a Virtual Wire Pair. The MAC Address of an EMAC VLAN can also be found on the command 'diagnose system ha mac'. Meanwhile, note that if VIP is configured on EMAC-VLAN, FortiGate, instead of responding with the EMAC-VLAN interface MAC address, uses the parent-interface MAC address: Technical Tip: VIP on EMAC-VLAN interface responds with Parent interface MAC address
