Technical Tip: ERR_FABRIC_POLICY_APPEND_FAILED: Appending firewal.policy related to advertised subnet failed. Check the CLI debug

[jo_rang]

Description	This article explains how to troubleshoot the GUI error ERR_FABRIC_POLICY_APPEND_FAILED.
Scope	FortiOS v7.2, v7.4 v7.6.1 and v7.6.2.

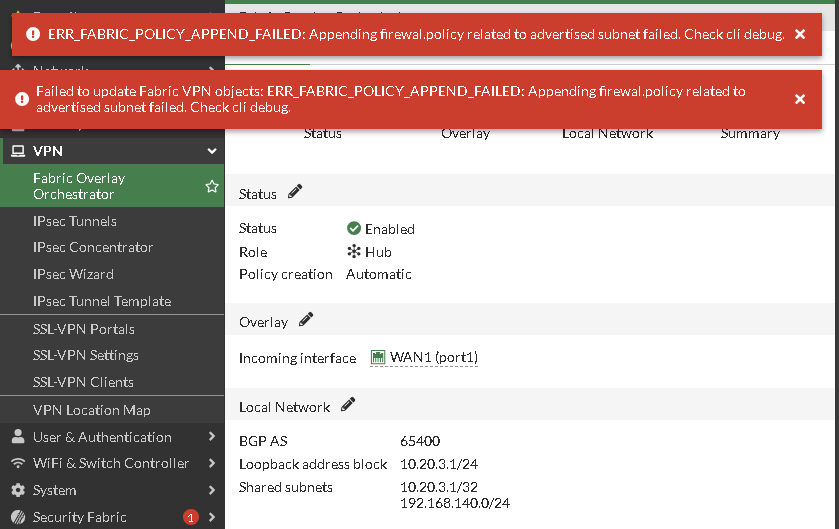

Solution	When adding a new interface to the Local Network under Fabric Overlay Orchestrator, the GUI may display the error ERR_FABRIC_POLICY_APPEND_FAILED: Appending firewal.policy related to advertised subnet failed. Check CLI debug. The following CLI commands can be used to diagnose this error: diagnose debug cli diagnose enable FG-LABVM-01 # 0: config system fabric-vpn 0: end 0: config system fabric-vpn 0: end 0: config system fabric-vpn 0: end 0: config router bgp 0: end 0: config router bgp 0: config neighbor-range 0: edit 1 0: set prefix 10.10.10.1 255.255.255.0 0: set neighbor-group "fabric_vpn_1" 0: end 0: end 0: config router bgp 0: config network 0: edit 1 0: set prefix 10.10.10.1 255.255.255.0 0: end 0: end 0: config firewall policy 0: edit 26 0: end 0: config system fabric-vpn 0: end 0: config firewall policy 0: edit 29 0: end 0: config firewall policy   <--- FortiGate attempts to create Firewall Policy 0: edit 30 0: set name "fabric_vpn_1_out"  -651: set srcintf "Test VLAN"       <--- Setting Source Interface fails (skipped) set dstintf "fabric_vpn_sdwan" (skipped) set action accept (skipped) set srcaddr "fabric_vpn_192.168.140.0_255.255.255.0_1" (skipped) set dstaddr "all" (skipped) set schedule "always" (skipped) set service "ALL" (skipped) set comments "Fabric VPN automatic policy." In this example, the error occurs because the interface 'Test VLAN' belongs to a system zone. Once the interface is assigned to a zone, the interface 'Test VLAN' cannot be used as source or destination interface in a firewall Policy - only the zone can be selected.  Solution 1: Set the Policy creation option to 'Health Check' or 'Manual"'. After, manually create the firewall policies referencing the system zone as source or destination interface. Solution 2: Upgrade the FortiGate to firmware version 7.6.3 or later, which supports automatic policy creation when interfaces are part of a zone. Solution 3: Remove the interface from the system zone and add it to the Local Network under the Fabric Overlay Orchestrator. Note that all existing policies referencing the system zone will no longer apply to this interface; therefore, new policies may need to be created. Related document: Fabric Overlay Orchestrator | FortiGate / FortiOS 7.4.9 | Fortinet Document Library
