| Description |
This article demonstrates a recommended configuration change for forwarding multicast frames over a software switch with a VXLAN interface. |
| Scope | FortiOS, VXLAN, Software Switch. |
| Solution |

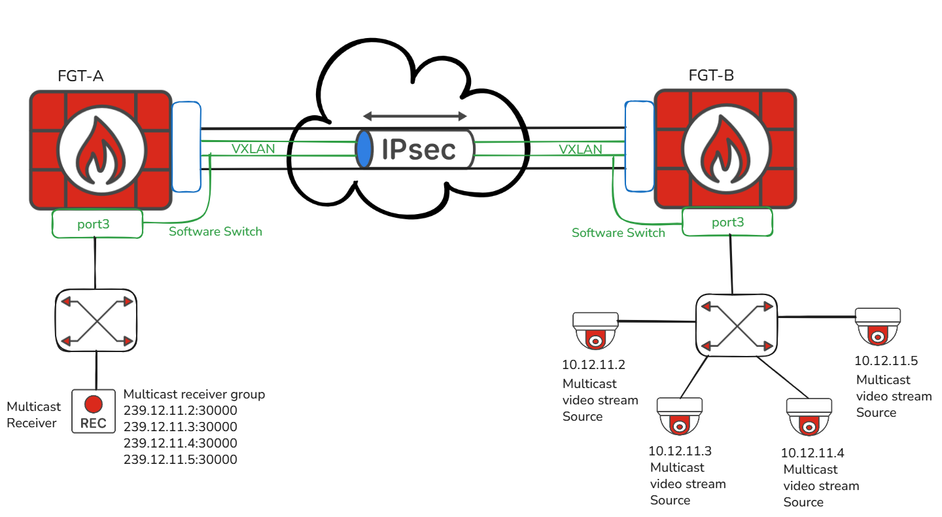

Example Topology:
Refer to the following KB article for the VXLAN-over-IPSec configuration: Technical Tip: How to setup a VXLAN over IPsec deployment
After configuring this, the following symptoms may be observed:
id=65308 trace_id=1537 func=print_pkt_detail line=6005 msg="vd-root:0 received a packet(proto=17, 10.12.11.2:30000->239.12.11.2:30000) tun_id=0.0.0.0 from vxlanInterface. " id=65308 trace_id=1537 func=__iprope_check line=2410 msg="gnum-10000a, check-ffffffffa002cdb0" id=65308 trace_id=1537 func=__iprope_check_one_policy line=2146 msg="checked gnum-10000a policy-1, ret-no-match, act-drop" id=65308 trace_id=1537 func=__iprope_check_one_policy line=2146 msg="checked gnum-10000a policy-2, ret-no-match, act-drop" id=65308 trace_id=1537 func=__iprope_check_one_policy line=2146 msg="checked gnum-10000a policy-3, ret-no-match, act-drop" ... <omitted> id=65308 trace_id=1537 func=__iprope_check_one_policy line=2146 msg="checked gnum-10000a policy-7, ret-matched, act-drop" id=65308 trace_id=1537 func=__iprope_user_identity_check line=1909 msg="ret-matched" id=65308 trace_id=1537 func=__iprope_check_one_policy line=2380 msg="policy-7 is matched, act-accept" id=65308 trace_id=1537 func=__iprope_check line=2427 msg="gnum-10000a check result: ret-matched, act-accept, flag-08010000, flag2-00000000" id=65308 trace_id=1537 func=iprope_policy_group_check line=4909 msg="after check: ret-matched, act-accept, flag-08010000, flag2-00000000" id=65308 trace_id=1537 func=__if_queue_push_xmit line=397 msg="send out via dev-port3, dst-mac-00:1d:09:1c:2f:3d" id=65308 trace_id=1537 func=__iprope_check line=2410 msg="gnum-10000a, check-ffffffffa002cdb0" id=65308 trace_id=1537 func=__iprope_check_one_policy line=2146 msg="checked gnum-10000a policy-1, ret-no-match, act-drop" id=65308 trace_id=1537 func=__iprope_check_one_policy line=2146 msg="checked gnum-10000a policy-2, ret-no-match, act-drop" id=65308 trace_id=1537 func=__iprope_check_one_policy line=2146 msg="checked gnum-10000a policy-3, ret-no-match, act-drop" ... <omitted> id=65308 trace_id=1537 func=__iprope_check_one_policy line=2146 msg="checked gnum-10000a policy-40, ret-no-match, act-drop" id=65308 trace_id=1537 func=__iprope_check_one_policy line=2146 msg="checked gnum-10000a policy-41, ret-no-match, act-drop" id=65308 trace_id=1537 func=__iprope_check_one_policy line=2146 msg="checked gnum-10000a policy-42, ret-no-match, act-drop" id=65308 trace_id=1537 func=__iprope_check_one_policy line=2146 msg="checked gnum-10000a policy-4294967295, ret-matched, act-drop" id=65308 trace_id=1537 func=__iprope_check_one_policy line=2380 msg="policy-4294967295 is matched, act-drop" id=65308 trace_id=1537 func=__iprope_check line=2427 msg="gnum-10000a check result: ret-matched, act-drop, flag-00000800, flag2-00000000" id=65308 trace_id=1537 func=iprope_policy_group_check line=4909 msg="after check: ret-matched, act-drop, flag-00000800, flag2-00000000" id=65308 trace_id=1537 func=__iprope_check line=2410 msg="gnum-10000a, check-ffffffffa002cdb0" id=65308 trace_id=1537 func=__iprope_check_one_policy line=2146 msg="checked gnum-10000a policy-1, ret-no-match, act-drop" id=65308 trace_id=1537 func=__iprope_check_one_policy line=2146 msg="checked gnum-10000a policy-2, ret-no-match, act-drop" id=65308 trace_id=1537 func=__iprope_check_one_policy line=2146 msg="checked gnum-10000a policy-3, ret-no-match, act-drop" ... <omitted>
When a multicast packet arrives over a VXLAN, the packet is first handled in OSI Layer 2 by the software switch. A multicast session is initialized, and the packet is forwarded to other connected switch interfaces.
Because multicast forwarding is enabled, the packet is then handled again in Layer 3. This is by design in case the multicast packet should also be forwarded to an interface outside the software switch. However, since the ingress interface has changed from the Layer 2 VXLAN switch member to the Layer 3 software switch interface, this removes the previous multicast session.
Since the multicast session entries are not retained, each multicast packet will trigger a policy lookup, which causes increased CPU usage.
Workaround: Disable Layer 3 processing for multicast traffic by turning off the multicast-forward function:
config system settings set multicast-forward disable end
The multicast-forward setting has VDOM scope.
If intra-switch-policy is set to 'explicit', a multicast-policy is still required to allow the traffic.
config system switch-interface edit "switchVxlan" set vdom "root" set member "port3" "vxlanInterface" set intra-switch-policy explicit next end
config firewall multicast-policy edit <index> set name "multicast_video_stream" set srcintf "vxlanInterface" set dstintf "port3" set srcaddr "10.12.11.0/24" set dstaddr "multicast_receiver_group" next end
If the intra-switch-policy setting has the default value 'implicit', all frames, including multicast frame,s are implicitly allowed between switch members, and there is no need for a matching multicast-policy.
config system switch-interface edit "switchVxlan" set vdom "root" set member "port3" "vxlanInterface" set intra-switch-policy implicit next end
Related articles: Technical Tip: How to setup a VXLAN over IPsec deployment Technical Tip: VXLAN over IPsec for multiple VLANs using software switch FortiOS Administration Guide | Configuring Multicast Forwarding |
