Technical Tip: Dialup IPsec VPN 'ike 0:<tunnel>:<xx>: parse error ' error

[KC_Hing]

Description	This article describes an issue where a VPN user is unable to connect Dial-up IPsec VPN with the FortiClient version (7.X.) as the dial-up client when multiple Diffie-Hellman groups are selected. The ike phase-1 negotiated with SA proposal chosen, but timeout with 'ike 0:<tunnel>:<xx>: parse error ' error. The ike debug output is shown below: ike 0:eeb4c223b2101232/0000000000000000:27: SA proposal chosen, matched gateway Dialup ike 0:Dialup: created connection: 0xdd48830 3 10.47.2.6->10.47.2.149:1011. ike 0:Dialup:27: DPD negotiated ike 0:Dialup:27: XAUTHv6 negotiated ike 0:Dialup:27: peer supports UNITY ike 0:Dialup:27: enable FortiClient license check ike 0:Dialup:27: enable FortiClient endpoint compliance check, use 169.254.2.1 ike 0:Dialup:27: selected NAT-T version: RFC 3947 ike 0:Dialup:27: cookie eeb4c223b2101232/5cedbcca290d1714 ike 0:Dialup:27: ISAKMP SA eeb4c223b2101232/5cedbcca290d1714 key 16:4F86B6E5801A736253390A3DF95E9F81 ... ike 0:Dialup:27: parse error <-- ... ike 0:Dialup:27: negotiation timeout, deleting ike 0:Dialup: connection expiring due to phase1 down
Scope	FortiGate and FortiClient 7.0 and above.

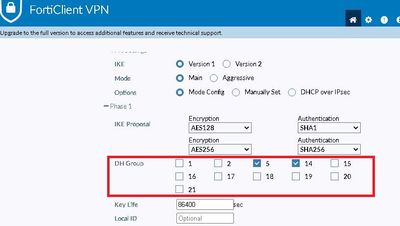

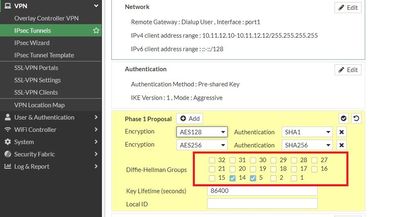

	This is because FortiClient cannot support multiple phase1 Diffie-Hellman (DH) groups for aggressive mode. Make sure FortiClient uses only one Diffie-Hellman (DH) group with VPN phase 1 aggressive mode configuration. For example: FortiGate CLI: Dialup IPSEC VPN is configured to accept Diffie-Hellman (DH) groups 5 and 14 in phase 1 interface configurations. config vpn ipsec phase1-interface     edit "Dialup"         set type dynamic         set interface "port1"         set mode aggressive         set peertype one         set net-device disable         set mode-cfg enable         set proposal aes128-sha1 aes256-sha256         set dhgrp 14 5  <-- FortiGate GUI: FortiClient: Edit VPN Connection -> Advanced Settings -> Phase 1 -> DH Group -> Select only one DH group 14 or 5 to match. It is strictly recommended to use the same parameters on FortiGate and FortiClient. It does not matter if the SA is negotiated: if some parameters do not match, they may cause parse errors and prevent the negotiation from being established:
