Technical Tip: Debug 'Connectivity Device error' when FortiNAC is configured as SNMP server on FortiGate

[ajoy]

Description	This article discusses debugging SNMP errors between FortiGate and FortiNAC.
Scope	FortiOS v6.x.x to v7.x.x.

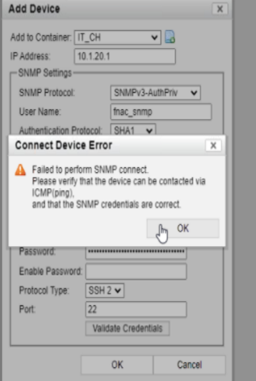

Solution	Error visible on FortiNAC:   FortiGate Side configuration: Steps to be followed on the FortiGate side: Run an SNMP debug. Putty1: diagnose debug disable diagnose debug reset diagnose debug application snmpd -1 diagnose debug console timestamp enable diagnose debug enable ------replicate the issue-------------------- To stop Debug: diagnose debug reset diagnose debug disable Run a sniffer for SNMP destination port 161. Putty2: diagnose sniffer packet any "port 161 or  port 162" 6 0 a Packets are seen on Port 161 when trying to establish a connection back and forth when replicating the issue. Verify whether the FortiGate is able to reach the SNMP server using an ICMP ping test. Confirm the configuration as per the diagram; it is possible to see 10.1.20.53 configured as an SNMP server: Technical Tip: How to Configure FortiGate SNMP Agent for Monitoring On the FortiNAC side: As per the error, check if the credentials are correct to add the FortiGate device for Monitoring. Check if it is possible to contact FortiGate by pinging the SNMP interface. Confirm the SNMP query from the FortiNac side: Technical Tip: Troubleshooting SNMP Timeout Errors Perform Troubleshooting on the FortiNAC side. Putty 1: tcpdump -nni eth0 host <ip address> and port 161 Putty 2: Run a snmpwalk and check for any error messages. SNMP v1: snmpwalk -v1 -c <R/W Community String> <ip address> system SNMP v2: snmpwalk -v2c -c <R/W Community String> <ip address> system SNMP v3: snmpwalk -v3 -u <username> -l <authpriv/authnopriv> -a <MD5/SHA> -A <password> -x <DES/AES> -X <password> <ipAddressOfDevice> system Check if there are time-out errors. If there are errors, then check the configuration again in FortiNAC. The issue above was resolved after resynching the interface in the article below, after the above steps were checked. The interface on the FortiNac itself is synced as per: Resync interfaces It is necessary to have FortiNAC re-read the device to learn of the changes and display an accurate representation in the Ports tab in Topology View After this, these errors should not be visible anymore if the basic connectivity is fine.
