Technical Tip: DNS cache behavior and how FortiGate handles DNS queries before/after dns-cache-ttl expiration

[kjay]

Description	This article describes how FortiGate processes DNS queries when DNS cache is available and how the behavior changes before and after the dns-cache-ttl timer expires. It also covers how to verify the DNS query flow using CLI commands and packet captures.
Scope	FortiGate.

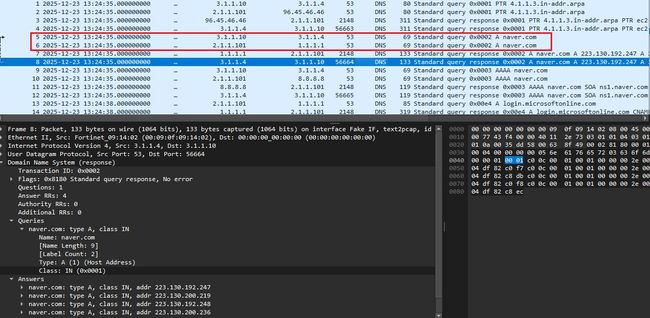

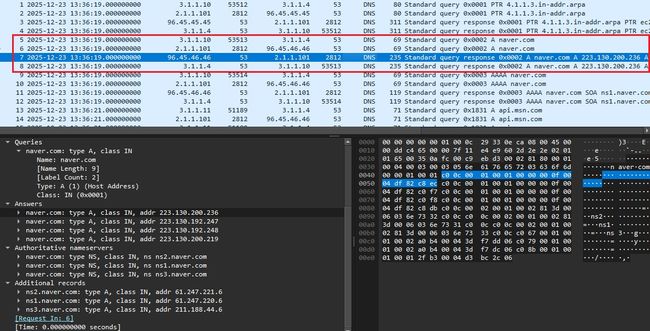

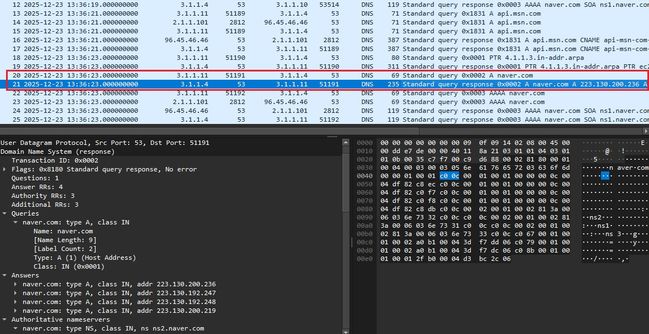

Solution	FortiGate maintains an internal DNS cache whenever DNS queries pass through the unit. When a DNS response is cached, FortiGate tracks: Original TTL returned by the external DNS server Remaining time before the internal cache expires dns-cache-ttl value configured in the config system dns The following sections describe the query flow, how to monitor it, and how to validate it with packet captures. Configuration: To speed up verification during testing, the dns-cache-ttl value is reduced to 60 seconds: config system dns     set primary 96.45.45.45     set secondary 96.45.46.46     set dns-cache-ttl 60 end Test scenario: PC1 sends a DNS query for 'naver.com': FortiGate receives the query, forwards it to the DNS servers configured under system.dns, and then caches the returned response. Verify DNS cache on the FortiGate: The TTL field consists of three values in the following format : <DNS TTL> : <Remaining FortiGate cache TTL> : <dns-cache-ttl> In this case: 54 = Original DNS TTL received from DNS server. 51 = Remaining internal cache lifetime. 57 = Allowed cache lifetime based on dns-cache-ttl setting (the cache will be deleted when this timer expires). PC2 sends a DNS query for the same domain 'naver.com'; two behaviors can occur depending on the cache status When dns-cache-ttl has NOT expired: FortiGate responds directly from cache. No packet is forwarded to the upstream DNS servers. PC2 receives an immediate response from FortiGate. This can be confirmed via packet capture: No DNS query is observed, leaving the WAN interface. Only internal DNS queries exist (from PC2 → FortiGate). When dns-cache-ttl HAS expired: Cached entry is removed A new cache entry is created after receiving a DNS response Packet capture will show: DNS query from FortiGate -> Upstream DNS server. DNS response returned to FortiGate. FortiGate is forwarding the result to PC2. Expected observations: Cache State PC → FGT FGT → DNS Behavior Cache valid Yes No FortiGate answers directly Cache expired Yes Yes FortiGate re-queries DNS Summary: FortiGate caches DNS responses until the configured dns-cache-ttl expires. While the cache is valid, FortiGate responds locally without forwarding to upstream DNS. When dns-cache-ttl expires, the cache is deleted, and FortiGate re-queries the DNS servers.
