Technical Tip: Configuring SNMP communities for HA mgmt and Root vdom loopback

[ChrisTan]

Description	This article explains how to configure the connectivity from an HA mgmt and loopback interface to an SNMP Server.
Scope	FortiGate.

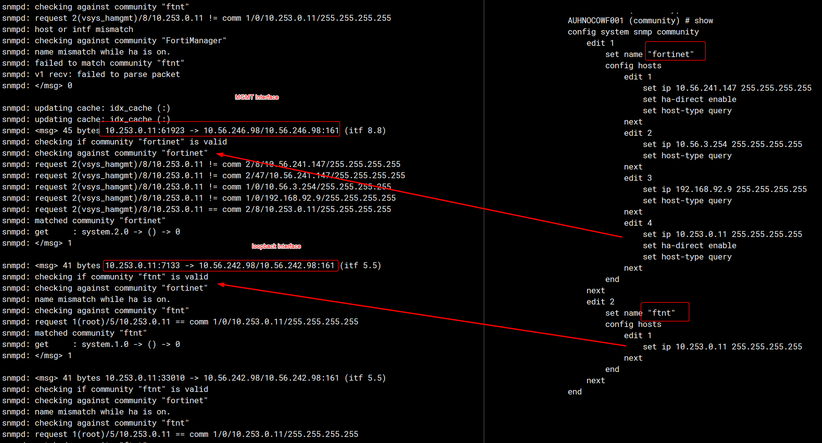

Solution	In FortiGate SNMP configuration, the ha-redirect needs to be enabled so that can reach the HA mgmt interfaces: config system snmp community     edit 3         set name "public"             config hosts                 edit 1                 FortiWiFi-home (1) # set ha-direct                 enable Enable setting.    <----- Use the vsys_hamgmt routes.                 disable Disable setting.  <----- Use the root routes. The below log will indicate the interface changes in 'dia deb app snmpd -1' when ha-direct enabled: snmpd: Successfully removed interface operation status file: /tmp/snmpd.intf_op_info snmpd: updating cache: idx_cache It will cause issues if the same SNMP server queries other interfaces, such as loopback in the default Root VDOM. It is necessary to create multiple SNMP communities for the same SNMP server so that it can inquiry HA mgmt and loopback interface:
