All the IP addresses used are for demonstration purposes only.
FortiAuthenticator configuration:
- The IP Address 10.9.10.25 is used in this case for SAML IDP.
- Configure the SAML IDP configuration in FortiAuthenticator.
- The local user group is configured instead of LDAP/RADIUS. Remote servers LDAP/RADIUS can be used for authentication as well.
- The SP config is copied from the FortiGate.
- Configure the Assertion attributes.
'FGTSAML' is the user group that can log in to the FortiGate as SSO Admin.
IDP Certificate.
- A default certificate is used in this article. Any other Local certificate can also be used.
FortiGate SSO Configuration:
FortiGate FIPS-CC enabled:
config system fips-cc
set status enable
end
FIPS-CC will be enabled only from Console access.
FG101F-1 # get sys status
Version: FortiGate-101F v7.0.12,build9223,240304 (FIPS-CC-70-16)
Security Level: 0
Firmware Signature: certified
Virus-DB: 1.00000(2018-04-09 18:07)
Extended DB: 1.00000(2018-04-09 18:07)
AV AI/ML Model: 0.00000(2001-01-01 00:00)
IPS-DB: 6.00741(2015-12-01 02:30)
IPS-ETDB: 0.00000(2001-01-01 00:00)
APP-DB: 6.00741(2015-12-01 02:30)
INDUSTRIAL-DB: 6.00741(2015-12-01 02:30)
IPS Malicious URL Database: 1.00001(2015-01-01 01:01)
Serial-Number: FG101FTKXXXXXXX
BIOS version: 05000008
System Part-Number: P24605-04
Log hard disk: Available
Hostname: FG101F-1
Private Encryption: Disable
Operation Mode: NAT
Current virtual domain: root
Max number of virtual domains: 10
Virtual domains status: 1 in NAT mode, 0 in TP mode
Virtual domain configuration: disable
FIPS-CC mode: enable
Current HA mode: standalone
Branch point: 0523
Release Version Information: FIPS-CC-70-16
System time: Sat Oct 5 16:11:57 2024
Last reboot reason: power cycle
FortiGate Interface: WAN1 connecting to the FortiAuthenticator.
FortiGate SAML Configuration:
CLI Reference:
config system saml
set status enable
set role service-provider
set default-login-page normal
set default-profile "super_admin"
set binding-protocol redirect
set idp-entity-id "http://10.9.10.25/saml-idp/fgtadmin/metadata/"
set idp-single-sign-on-url "https://10.9.10.25/saml-idp/fgtadmin/login/"
set idp-single-logout-url "https://10.9.10.25/saml-idp/fgtadmin/logout/"
set idp-cert "FAC"
set server-address "10.9.0.141"
end

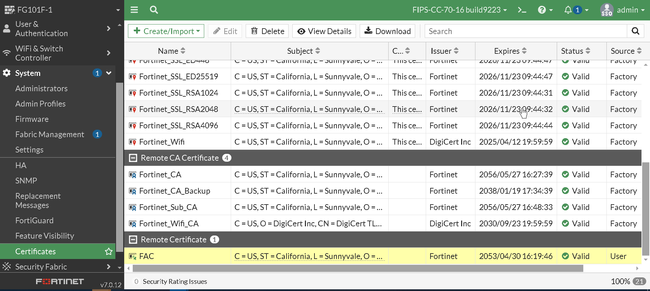

Here 'FAC' is the Certificate imported from FortiAuthenticator to FortiGate as a Remote Certificate:

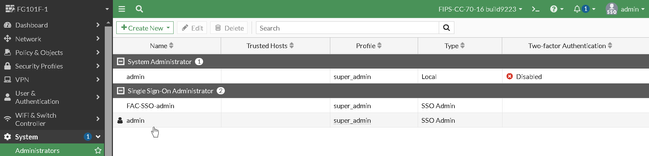

Configure the SSO Admin on FortiGate:
CLI Reference:
config system sso-admin
edit "FAC-SSO-admin"
set accprofile "super_admin"
set vdom "root"
next
end
Final Result:
This configuration can also be used for Non-FIPS Certified FortiOS.
|
