Technical Tip: Configure IKEv2 IPsec VPN with Windows Phone 8.1, Windows 8.1

[mbernatek]

Description

This article describes how to configure IKEv2 IPsec VPN with Windows Phone 8.1 and Windows 8.1 using user credentials.

Scope

FortiGate.

Solution

Windows Phone 8.1 supports IPsec VPN in 2 modes:

• IKEv2 IPsec VPN
• L2TP/IPsec VPNIKEv2 IPsec VPN is the preferred way of configuration on FortiGate devices.



For user authentication, the Extensible Authentication Protocol also known as 'EAP' is used. Two methods are supported:

• Username and password [PEAP-MSCHAPv2].
• Certificate [EAP-TLS].

This guide explains the 'username and password' option.

When using EAP with Windows Phone the certificate authentication during IKEv2 exchange must be used.

In this case, the Certificate Authority root certificate used to sign the FortiGate certificate for VPN must be imported to Windows Phone. It may not be needed if well know public Certificate Authority is used.

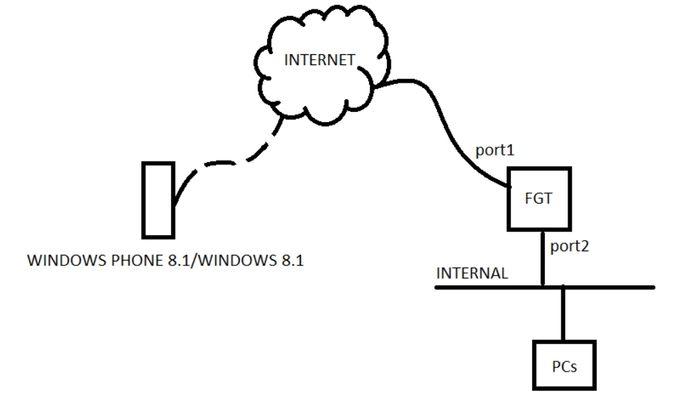

Network diagram.

Prerequisites.

• Imported root CA certificate on FortiGate.
• Imported certificate on FortiGate and signed by CA.
• Imported root CA certificate on Windows Phone.

FortiGate configuration.

1. Create local user and group

   config user local
       edit local\\user1
           set type password
           set passwd pass1
       next
   end
   config user group
       edit GRP-ipsec
           set member local\\user1
       next
   end


2. Configure IPsec phase 1:

   config vpn ipsec phase1-interface
       edit "ipsec-clients"
           set type dynamic
           set interface "port1"
           set ike-version 2
           set authmethod signature
           set mode-cfg enable
           set ipv4-dns-server1 8.8.8.8
           set ipv4-dns-server2 8.8.4.4
           set proposal aes256-sha1 aes256-sha256 aes128-sha1 aes128-sha256
           set dhgrp 15 14 2
           set eap enable
           set eap-identity send-request
           set authusrgrp "GRP-ipsec"
           set certificate "FG-certificate"
           set ipv4-start-ip 172.16.10.10
           set ipv4-end-ip 172.16.10.100
           set ipv4-netmask 255.255.255.0
       next
   end


3. Configure IPsec phase 2:

   config vpn ipsec phase2-interface
       edit "ipsec-clients-p2"
           set phase1name "ipsec-clients"
           set proposal aes256-sha1 aes256-sha256 aes128-sha1 aes128-sha256
           set dhgrp 15 14 2
           set keylifeseconds 1800
       next
   end

   The main IPsec configuration is now complete. To get IPsec working the firewall policy must exist.


4. Configure address objects:

   config firewall address


       edit LAN
           set associated-interface "port2"
           set subnet 10.10.0.0 255.255.252.0
       next
       edit LAN-IPsec-Clients
           set associated-interface "ipsec-clients"
           set subnet 172.16.10.0 255.255.255.0
       next
   end



5. Configure firewall policy for internal access from the IPSec VPN interface to the LAN interface.

   config firewall policy
       edit 0
           set srcintf "ipsec-clients"
           set dstintf "port2"
           set srcaddr "LAN-IPsec-Clients"
           set dstaddr "LAN"
           set action accept
           set schedule "always"
           set service "ALL"
       next
   end


As for Internet connection, change the destination interface from LAN interface to WAN with NAT enabled.

Windows Phone configuration.

1. Go to Settings -> VPN and select + to add a new profile.

2. Enter server name or IP address.
3. Select type 'IKEv2'.
4. Select username+password in 'Connect using'.
5. Set 'User name' to local\user1.
6. Set password to pass1.
7. Configure the rest of the settings.



For more information about Windows Phone VPN configuration refer to the document 'Try it out: Windows Phone 8.1 VPN' on the Microsoft site.

Notes:

1. Windows Phone VPN support is designed for Enterprise usage. It expects credentials in the form 'domain\username' to work properly. It is why the user in this guide is set to 'local\user1' as local authentication is used.

   If only 'user1' is used as a credential on the Windows Phone it will send the username as 'Windows Phone\user1' and then this user has to be on FortiGate to match.

   For Enterprise deployment configure the user group with one of the remote authentication options (RADIUS, LDAP).


2. Configuration for desktop Windows 8.1 is the same. It is different in that Windows 8.1 does not add any domain to the username if not in the Domain.



Refer also to the document 'FortiOS Certificate Management' which is available in the Fortinet Document Library.
