| Description | This article describes how to change the BIOS Security Level on FortiGate G series models. |
| Scope | FortiGate 50G, 70G, 90G (Gen2), 120G, and 200G series and their variants. |
| Solution |
On most FortiGate Appliances, including the 30G models, to change the BIOS security level and allow to installation of unsigned Firmware Images, it is necessary to follow the steps on the following documentation page:
BIOS-level signature and file integrity checking during downgrade - FortiOS 7.2.9 release notes.
For the 50G, 70G, 90G (Gen2), and 200G series of appliances, option '[U]' inside the System Information menu does not exist. To change the security level, this appliance series has a special switch panel.

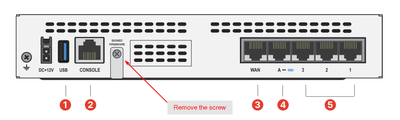

For the 50G series, the signed firmware cover is on the back of the appliance. The screw needs to be removed from the panel.

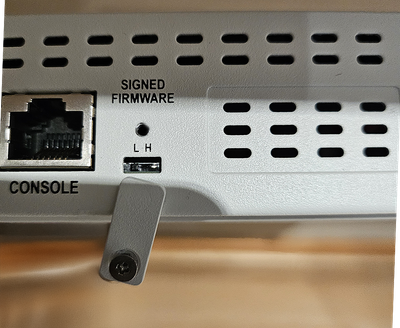

After the screw is removed, it will reveal a switch that can be set to Low [L] or High security mode [H]:
For the 70G, the signed firmware panel is also on the back. The screw needs to be removed to reveal the switch to set Low [L] or High security mode [H].

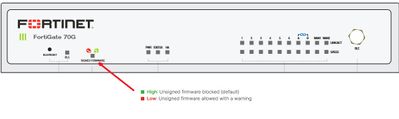

On the front of the 70G series, there is an LED to indicate whether the security mode is set to [L] or [H].

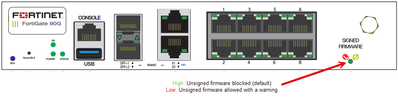

Note: FortiGate 90G (Gen2) is Part Numbers: Pxxxxx-11-01 and above (see the FortiGate 90G quick reference guide). On the front of the 90G (Gen2) series, there is an LED to indicate whether the security mode is set to [L] or [H].
For the 90G (Gen2), the signed firmware panel is also on the back. The screw needs to be removed to reveal the switch to set Low [L] or High security mode [H].
For the 120GG series, both the panel and the LED indicators are on the front of the unit. The screw needs to be removed to access the switch to set the security mode to [L] or [H]. The LED indicates the current mode.
For the 200G series, similar to the 120G, both the panel and the LED indicators are on the front of the unit. The screw needs to be removed to access the switch to set the security mode to [L] or [H]. The LED indicates the current mode.
For more information about setting up FortiGate appliances, see the Hardware Guides.
For more information regarding the different BIOS security levels, refer to this documentation: BIOS security Low and High level classification
Note: When this switch is moved from high (default) to low, this will generate a log with the ID:
22906 - LOG_ID_SECURITY_LEVEL_CHANGE
Note: When the value of the switch is adjusted, the BIOS security value will not update until the FortiGate is rebooted. The command get system status can be used to check the current BIOS security level and the current physical switch security level setting. |
