Technical Tip: Cannot set region when Inline Scanning with FortiGuard AI-Based Sandbox Service is used

[vifi]

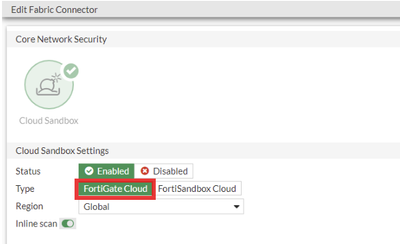

Description	This article describes how to fix the issue when it is not possible to set the region in FortiGate Cloud under 'Cloud Sandbox Setting'
Scope	FortiGate.

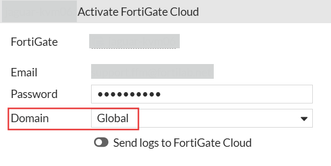

Solution	How to configure: Inline Scanning with FortiGuard AI-Based Sandbox Service  Note: FortiGate Cloud is chosen instead of FortiSandbox Cloud. While setting the region, the error below is shown: execute forticloud-sandbox region Failed Command fail. Return code 5 Troubleshooting steps: Check if FortiGate Cloud is activated successfully. Check the region where FortiGate Cloud is activated under Dashboard -> Status -> FortiGate Cloud. Issue these debugs: diag test application forticldd 1 diag test application forticldd 2 diag test application forticldd 3 diagnose debug application forticldd -1 diagnose debug enable FG # diagnose test application forticldd 3 Debug zone info: Domain:GLOBAL Home log server: 173.243.132.171:514 Alt log server: 173.243.139.121:514 Active Server IP:173.243.139.121 Active Server status: unknown Log quota: 3145728MB Log used: 0MB Daily volume: 20480MB fams archive pause: 0 APTContract : 0 APT server: 0.0.0.0:0 APT Altserver: 0.0.0.0:0 Active APTServer IP: 0.0.0.0 Active APTServer status: unknown [294] fds_svr_default_on_established: Cloud-sandbox-controller has connected to ip=173.243.139.121:443 [301] fds_svr_default_on_established: server-Cloud-sandbox-controller handles cmd-24 (output ommitted) [320] fds_https_recv: received the header from server: 173.243.139.121:443, [HTTP/1.0 503 Service Unavailable Cache-Control: no-cache Connection: close Content-Type: text/html Content-Length: 19] [330] fds_https_recv: response code is 503: [HTTP/1.0 503 Service Unavailable Cache-Control: no-cache Connection: close Content-Type: text/html Content-Length: 19] [669] fds_https_stop_server: 173.243.139.121:443 [206] __ssl_data_ctx_free: Done [1094] ssl_free: Done [198] __ssl_cert_ctx_free: Done [1104] ssl_ctx_free: Done [1085] ssl_disconnect: Shutdown [550] fds_https_rxtx: Protocol error [240] fds_svr_default_on_error: Cloud-sandbox-controller: ip=173.243.139.121:443, reason=2 [280] fds_svr_default_on_error: Cloud-sandbox-controller: req-id=24, num_try=1, read=0, reason=2 Setting the region under 'config system fortiguard' gives an error: FG (fortiguard) # set sandbox-region Global Sandbox region can only be set by 'exec forticloud-sandbox region'. node_check_object fail! for sandbox-region Global value parse error before 'Global' Command fail. Return code -39 Check the configuration of FortiGuard: Example: config system fortiguard     set fortiguard-anycast disable     set update-server-location eu     set webfilter-cache disable     set sdns-server-ip "208.91.112.220" "173.243.140.53" "210.7.96.53"     set sdns-options include-question-section end Despite the FortiGate communicating successfully with FortiGuard servers, still, the region cannot be set. Solution: Change the configuration of FortiGuard as below: config system fortiguard     set fortiguard-anycast disable     set protocol udp     set port 8888     set webfilter-cache disable  If the issue is not resolved after this change, share the debugs mentioned above with Technical Support to investigate further.
