Technical Tip: Binding SSL VPN user/group to public IP address

[acp]

Description

This article describes how to bind SSL VPN users/groups to specific IP addresses for security and authentication.

Scope

FortiGate.

Solution

Network diagram.

Scenario 1.
User1 and User2 with public_IP_1.

User1 of User1Group1 from PC1 with Public_IP_1 can connect to ssl_vpn.
User2 of User2group2 from PC2 with  Public_IP_1  cannot connect to ssl_vpn.

Scenario 2.
User1 and User2 with Public_IP_2.

User1 of User1Group1 from PC1 with Public_IP_2  cannot  connect to ssl_vpn.
User2 of User2group2 from PC2 with Public_IP_2 can connect to ssl_vpn.

1. Users and usergroups configuration.

In this example the usergroup is local.

• Go to User & Device -> User.

• Configure User1Group1 with user ‘User1’.

• Configure User2Group2 with user ‘User2’.

2. Firewall addresses configuration.

3. Create an SSL VPN portal.

• Go to VPN -> SSL -> Portals.
• Configure portals 'full-access-1'.


4. Configure SSL VPN connection settings.

• Go to VPN -> SSL -> Settings.

• Select the listen external interface, listen port.

• Restrict the access to SSL VPN to the public IP previously defined ( Public_IP_1, Public_IP_2).

• Associate user/group to SSL VPN Portals.



Note:
So far the address groups have been associated with the portal, but there is not an exclusive restriction yet by the public IP: user1 can access from both ‘ Public_IP_1 'and ‘ Public_IP_2 '.

Following CLI only config on autherntication-rule under VPN SSL setting provide the behavior request.

• Go to CLI via SSH and specify source-int (port3 only in this case) and source-address per authentication rule.


config vpn ssl settings
    config authentication-rule
        edit 1
            set source-interface "port3"
            set source-address " Public_IP_1 "
            set groups " User1Group1"
            set portal "full-access-1"
        next
        edit 2
            set source-interface "port3"
            set source-address " Public_IP_2"
            set groups " User2Group2"
            set portal "full-access-1"
        next
    end
end

5. Configure policy.

   Go to Policy & Objects-> Policy -> IPv4.

Test 1.
Try to log in from Public_IP_1 with User1 and User2.

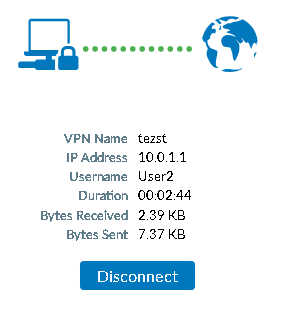

Test 2.
Try to log in from Public_IP_2 with User1 and User2.
