Description
This article describes how to get an alert email whenever any local policy is added or changed on the firewall with the help of automation stitches.
Scope
FortiGate.
Solution

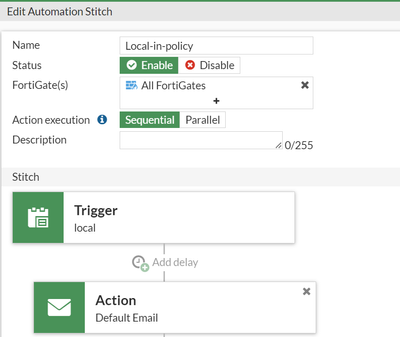

Configure the automation stitches as below:
Go to Security Fabric -> Automation and select 'Create New'.

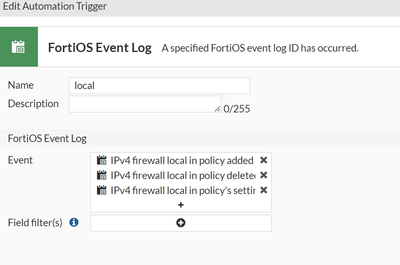

Automation Trigger:

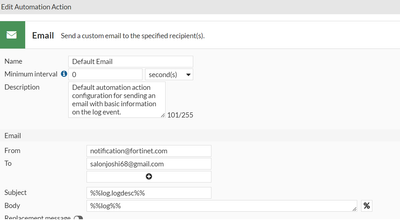

Automation Action:
CLI reference:
config system automation-action
edit "Default Email"
set description "Default automation action configuration for sending an email with basic information on the log event."
set action-type email
set email-to "salonjoshi68@gmail.com"
set email-from "notification@fortinet.com"
set email-subject "%%log.logdesc%%"
set message "%%log%%"
next
end
config system automation-trigger
edit "local"
set event-type event-log
set logid 32172 32174 32173
next
end
config system automation-stitch
edit "Local-in-policy"
set trigger "local"
config actions
edit 1
set action "Default Email"
set required enable
next
end
next
end
Make sure the SMTP server configuration is working properly. This example is using the default FortiGuard SMTP configuration so, if any local policy is added or changed, an alert will be obtained in the specified email as below:
To test an automation stitch:
On the FortiGate GUI, go to Security Fabric -> Automation, 'right-click' on the respective automation stitch, select Test Automation Stitch. Testing an automation stitch from the CLI is performed using the command:
diagnose automation test <stitch-name> <log>
