Description

This article provides an example of how to configure Dialup IPsec VPN with split-tunnel in FortiOS 4.0 MR3.


Scope

Dialup IPsec VPN Configuration


Solution

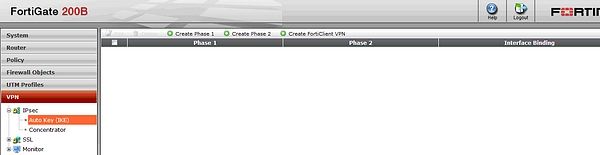

Step 1: Select Create FortiClient VPN

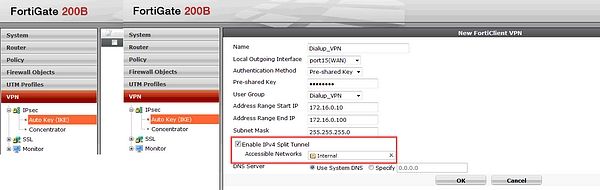

Step 2: Configure the Pre-share key, User group, IP range for Dialup VPN user and check the Enable IPv4 Split Tunnel checkbox and assign the Internal Network address.



Step 3: Configure Firewall Policy Internal to Dialup VPN tunnel.



Step 4: Configure Firewall Policy from Dialup VPN tunnel to Internal.

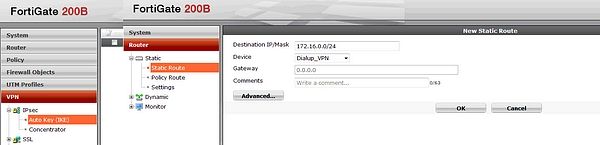

Step 5: Configure Static Route for the Dialup VPN user IP range.
