Description

This article provides a quick step by step guide on how to configure Dialup IPSec VPN with Full-tunnel in FortiOS 4.0 MR3.


Solution
How to Configure Dialup VPN with Full Tunnel in FortiOS 4.0 MR3

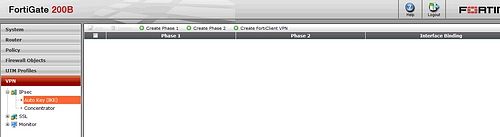

Step 1: Click on Create FortiClient VPN



Step 2: Configure the Pre-share key, User group, IP range for Dialup VPN user and uncheck the Enable IPv4 Split Tunnel checkbox

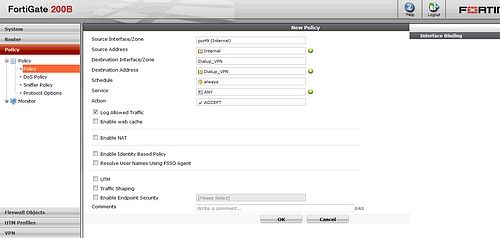

Step 3: Configure Firewall Policy Internal to Dialup VPN tunnel

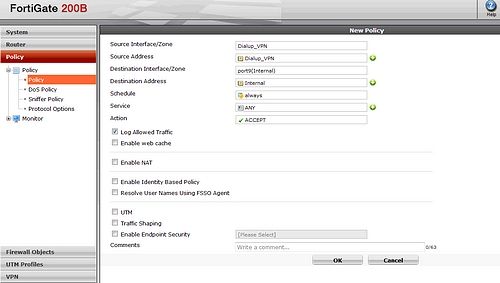

Step 4: Configure Firewall Policy from Dialup VPN tunnel to Internal

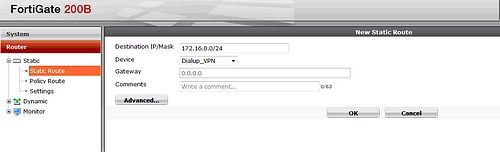

Step 5: Configure Static Route for the Dialup VPN user IP range
