Description This article describes how to push configuration from FortiGate Cloud to FortiGate.
Scope FortiGate, FortiGateCloud.
Solution

The Configuration Management (editing and deployment) is only available for paid subscription.
Feature comparison



  1. Login to Fortigate Cloud Portal
  2. Activate Fortigate Cloud on the FortiGate:

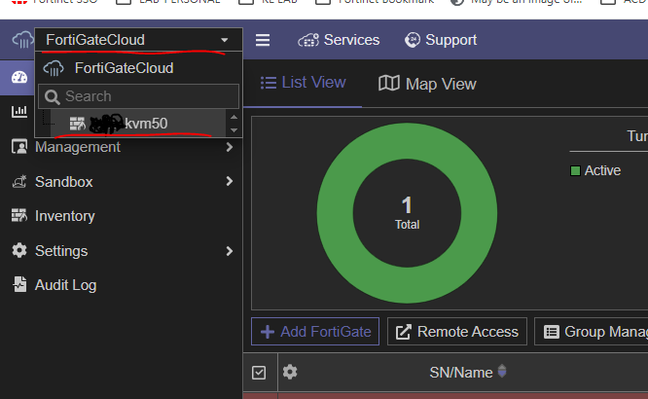

  1. Select the FortiGate and go to Device View. There are multiple ways to do this.
  • 'Double-click' the FortiGate Name or Serial Number.
  • Hover the mouse pointer to FortiGate Name or Serial Number and the Device View button will appear.




  • Under the drop-down menu.


  1. Go to Management -> Config. A new tab will open.


  1. Import configuration before any configuration change to make sure that the latest revision of configuration is saved on FortiGate Cloud.


  1. Implement the configuration change. In this example, A new Administrator Account will be added.








  1. Deploy the configuration from FortiGate Cloud to FortiGate. Set a schedule or choose to deploy the change immediately.






Below is the result of FortiGate:
