Technical Tip: External captive portal authentication with self-registration option using FortiWLC and FortiAuthenticator

[vinodhk]

Description
This article describes external captive portal authentication with self-registration option using FortiWLC and FortiAuthenticator.

Related link:

https://cookbook.fortinet.com/fortiauthenticator-guest-portal-fortiwlc/index.html

Scope

Solution

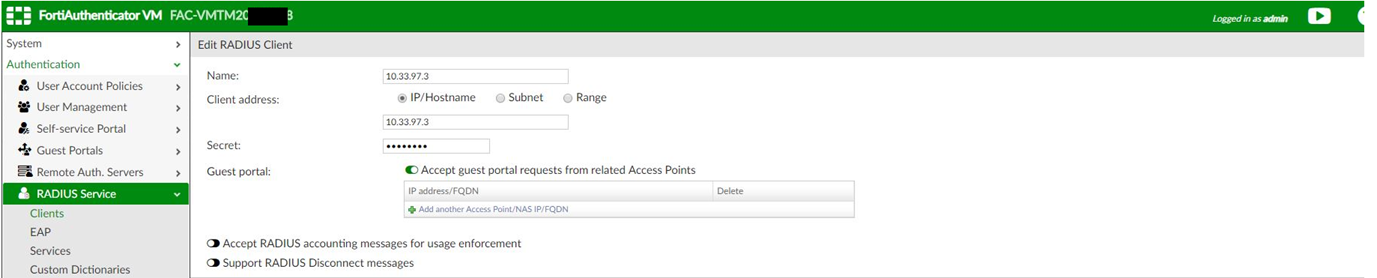

1) Make sure 'Accept guest portal requests from related Access Points”'option is enabled on FAC under Radius service -> Clients.

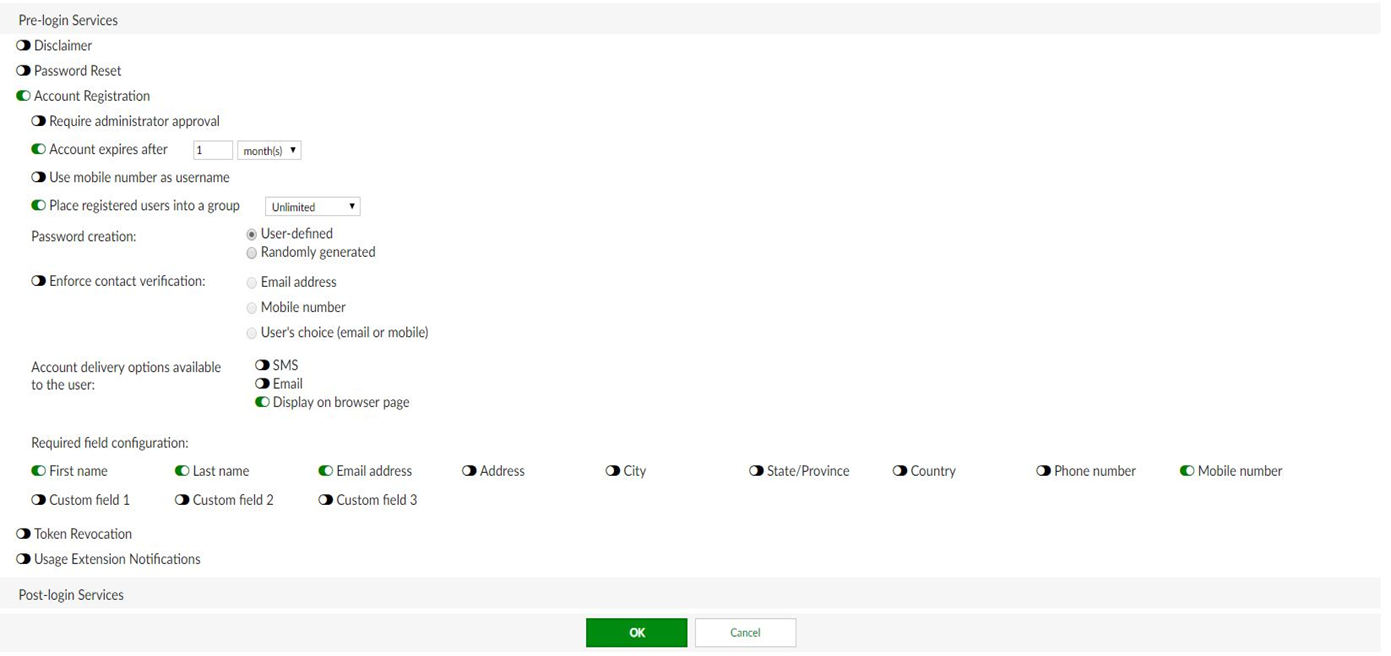

2) 'Pre-login Services' is enabled as per the customer requirement with the required field configuration option under Guest Portals -> Portals -> Pre-login Services.

3) Once the Pre-login services option is enabled on the FortiAuthenticator then the client will be able to see the 'Register' option on the captive portal page for the self-registration.
