Description
This article defines various errors and steps taken to solve these errors noticed while importing the CRL. A common error starts with 'unable to load CRL file'.
Scope
FortiAuthenticator v6.6.6.
Solution
Ensure that the Certificate Revocation List has some contents; if the content shows 0 bytes, re-download the CRL from the CA.
Verify to see if the CRL file has not expired: 'next update' field.

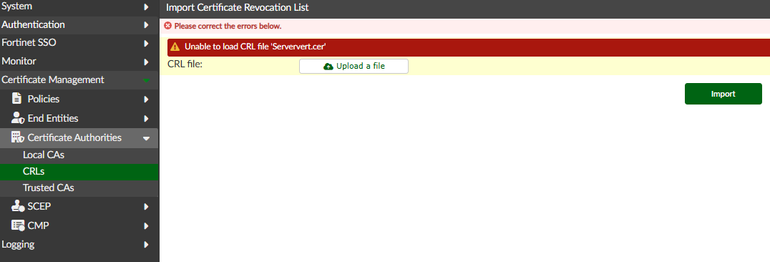

If the wrong format is added, the error message is: 'Unable to load CRL file "filename"'.
Formats as DER encoded, X.509 is supported, other formats as .cer, PEM, will fail.
OpenSSL can be used to check the format: 'openssl crl -in CRL.crl -text -noout'.
Verify to see if any details are missing:
- Serial Number.
- Signature and version.
- Last update.
- Next update.
- Issuer.
- Revocation date and reason.
If the import fails with the error 'Unable to load CRL file. Ensure that it has a valid format and not empty'.
It works as expected for any version before v6.6.6.
This is a known issue referred via mantis 1216923, which is fixed in version 6.6.7.
