Technical Tip: Distinguishing user groups for IPsec VPN authentication when using FortiGate and FortiAuthenticator

[slovepreet]

Description	This article describes how to distinguish user groups during IPsec VPN authentication when FortiGate is integrated with FortiAuthenticator and users are migrating from SSL VPN to IPsec VPN. Authentication failures can occur when multiple user groups exist, and RADIUS attributes are not configured correctly on FortiAuthenticator.
Scope	FortiGate, FortiAuthenticator, IPsec VPN, SSL VPN.

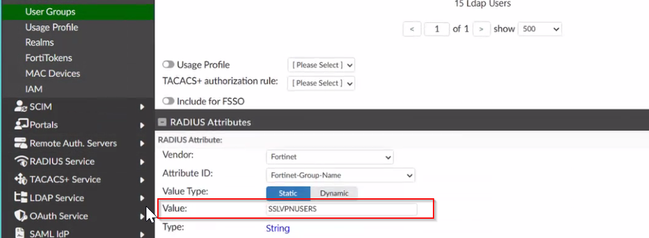

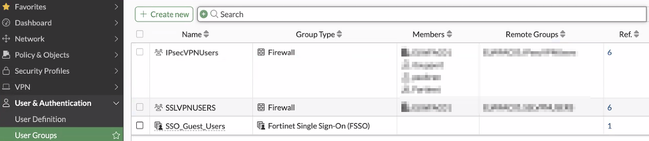

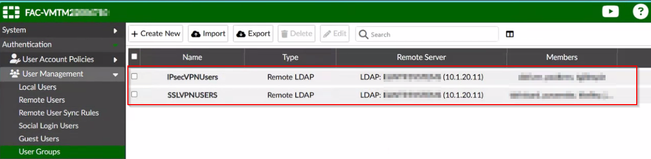

Solution	When FortiGate authenticates users for an IPsec tunnel using FortiAuthenticator, group matching relies on RADIUS attributes returned by FortiAuthenticator. In migration scenarios, two distinct user groups may exist, such as 'SSLvpnuser' and 'IPsecuser'. If the IPsec VPN user is not configured with the appropriate RADIUS attributes on FortiAuthenticator, the authentication request may be matched against the SSL VPN user group instead. This mismatch causes authentication or tunnel establishment failures. On FortiAuthenticator, the RADIUS or LDAP backend user must be configured to return the Fortinet Vendor-Specific Attribute for group name matching. If the attribute is missing or incorrectly set, FortiGate may incorrectly associate the user with the SSL VPN group. For example, FortiGate is configured with two user groups, 'SSLVPNusers' for SSL VPN authentication and 'IPsecVPNusers' for IPsec VPN authentication, as shown in the picture below. FortiGate user Groups: On the FortiAuthenticator, the same two groups were configured as shown below.  But, only the 'SSLVPNUser' group on the FortiAuthenticator is set with the 'Radius attribute' configuration, and the 'IPsecVPNuser' group's 'Radius attribute' is left blank, as shown in the picture below: This would lead to an issue with the group mismatch when attempting to connect to the VPN.  The issue can be confirmed on FortiGate by enabling authentication debugging. Run the following commands on FortiGate. diagnose debug reset diagnose debug application fnbamd -1 diagnose debug enable During the failed authentication attempt, debug output will show an error indicating group mismatch. A common message observed is 'Failed group matching'. To prevent this issue, configure explicit RADIUS attributes on FortiAuthenticator for each user group. Ensure the following configuration is in place on FortiAuthenticator. Define separate user groups for SSL VPN and IPsec VPN authentication. Configure RADIUS attributes for each group. Set the Fortinet Group Name attribute to match the corresponding user group name configured on FortiGate. Group attributes on FortiAuthenticator: The Fortinet Group Name values must exactly match the user group names configured on FortiGate. After the correct RADIUS attributes are configured, FortiGate will correctly distinguish between SSL VPN and IPsec VPN users during authentication. This ensures successful group matching and allows IPsec VPN connections to establish as expected.
