Step 1: Creating Local CA certificate on FortiAuthenticator.
Creating a local CA on FortiAuthenticator
The created local CA certificates will be displayed as below.

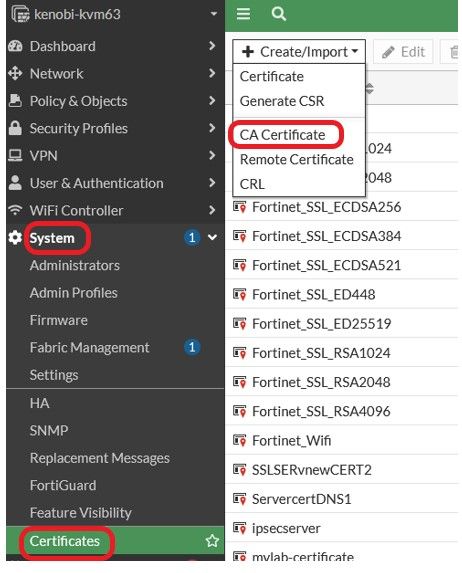

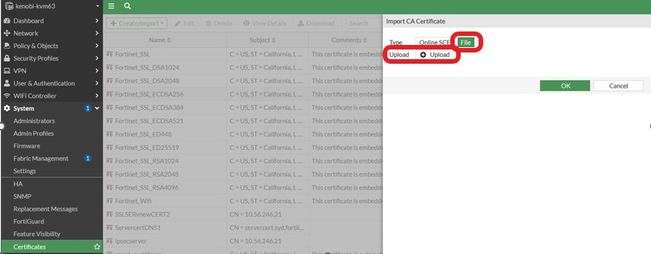

Step 2: Upload the CA certificate to FortiGate under the remote CA certificate.

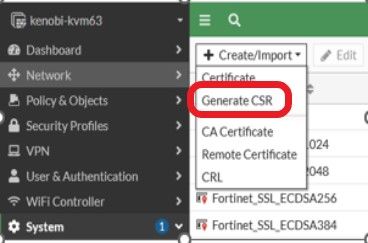

Step 3: Generate CSR from FortiGate.
Under certificates, it will appear as pending.
Select it and download it as per the below screenshot.

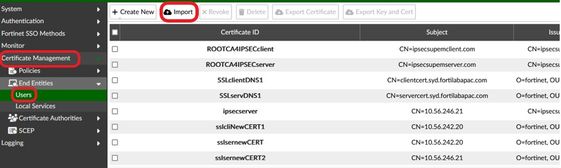

Step 4: Go to the FortiAuthenticator, upload the downloaded certificate using the import button, and sign the request.
Step 5: After successfully signing the certificate, export it to be used in the FortiGate.

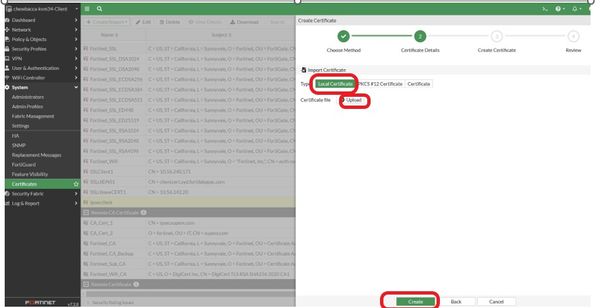

Step 6: Import the certificate to the FortiGate local certificate store as below.
After the successful creation of the certificate, it will be possible to see the certificate as below.
Note 1: It is necessary to do this process for 2 certificates for the 2 FortiGate devices that are used for IPsec (steps 2 to 6).
Note 2: In this article, it is used an IPsec between 2 FortiGates with certificate authentication. During the creation via the template, it is necessary to provide the certificate as well as the CA certificate of the remote end certificate to verify (in this case, both use the same CA certificate).
FortiGate IPsec configuration will look as below:
| FortiGate1 |
FortiGate2 |
config vpn ipsec phase1-interface
edit "IPSECser"
set interface "port1"
set authmethod signature
set net-device disable
set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1
set comments "VPN: IPSECser (Created by VPN wizard)"
set wizard-type static-fortigate
set remote-gw 10.56.246.21
set certificate "ipsecclient" <-- Certificate uploaded.
set peer "ipsecclientcert"
next
end |
config vpn ipsec phase1-interface
edit "IPSECcert"
set interface "port1"
set authmethod signature
set net-device disable
set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1
set comments "VPN: IPSECcert (Created by VPN wizard)"
set wizard-type static-fortigate
set remote-gw 10.56.242.20
set certificate "ipsecserver"
set peer "ipsecservercert"
next
end |
config user peer
edit "ipsecclientcert"
set ca "CA_Cert_1" <-- CA certificate of the peer.
next
end |
config user peer
edit "ipsecservercert"
set ca "CA_Cert_2"
next
end |
Note 3: This can also be used in FortiGate's connected SSL VPN user and server with certificate authentication and other used cases as well.
Note 4: If using a public CA, it is possible to generate a CSR and the device will communicate with the public CA to get the certificate signed. It will be an automatic process.
|
