Description
This article describes how to troubleshoot the playbooks in FortiAnalyzer.
Scope
FortiAnalyzer v7.2+.
Solution
To create a playbook, follow this KB article: Technical Tip : How to create a custom playbook using an event handler and creating an incident unde....
The following commands will provide the path for troubleshooting the playbook issues.
To run any enabled playbook under the CLI:
diagnose test application fazwatchd 10 trigger-playbook <ADOM_NAME> id=<playbook_uuid>
To review the running task report:
diagnose test application fazwatchd 5 <ADOM_NAME> <playbook_uuid>
For additional debugging:
diagnose debug application fazwatchd 255
diagnose debug enable
After the tests:
diagnose debug disable
diagnose debug reset
To restart the service:
diagnose test application fazwatchd 99 <<< restart service
If the trigger is supposed to happen from an event handler, use the following command:
diagnose test application fazalertd 200 notify
For additional debugging on the event handlers, review the following article:
Troubleshooting Tip: How to troubleshoot for event handler related issues
Example:
FAZ8HG-1 # diagnose test application fazwatchd 5
please provide adom name
FAZ8HG-1 # diagnose test application fazwatchd 5 root
please provide playbook uuid from below:
09f72aeb-5175-4c1b-8505-2d3d39bccd03 (Bandwidth Exceeded Run Report)
8556e9b5-c067-404c-8b6b-1f5c8bba0656 (Indicator Enrichment)
1126c09a-9398-49e8-a843-644c8637f168 (creating_report)
FAZ8HG-1 # diagnose test application fazwatchd 5 root 1126c09a-9398-49e8-a843-644c8637f168
please provide job id from below:
runid_trig__2025-05-29T16:19:35.605382+02
runid_trig__2025-05-29T16:13:42.481672+02
runid_trig__2025-05-29T16:23:28.0+02:00
FAZ8HG-1 # diagnose test application fazwatchd 5 root 1126c09a-9398-49e8-a843-644c8637f168
<Integer> Var3.
FAZ8HG-1 # diagnose test application fazwatchd 5 root 1126c09a-9398-49e8-a843-644c8637f168 runid_trig__2025-05-29T16:19:35.605382+02
please provide task id from below:
task_soar_license
generate_incident_report
FAZ8HG-1 # diagnose test application fazwatchd 5 root 1126c09a-9398-49e8-a843-644c8637f168 runid_trig__2025-05-29T16:19:35.605382+02 task_soar_license
[2025-05-29T16:19:39.479+0200] {task_command.py:426} INFO - Running <TaskInstance: 3_1126c09a-9398-49e8-a843-644c8637f168.task_soar_license runid_trig__2025-05-29T16:19:35.605382+02 [running]> on host FAZ8HG-1
FAZ8HG-1 # diagnose test application fazwatchd 5 root 1126c09a-9398-49e8-a843-644c8637f168 runid_trig__2025-05-29T16:19:35.605382+02 generate_incident_report
[2025-05-29T16:19:44.527+0200] {task_command.py:426} INFO - Running <TaskInstance: 3_1126c09a-9398-49e8-a843-644c8637f168.generate_incident_report runid_trig__2025-05-29T16:19:35.605382+02 [running]> on host FAZ8HG-1
[2025-05-29T16:19:44.634+0200] {taskinstance.py:2905} ERROR - Task failed with exception
soar_exception.SoarException: Invalid params: Error in parsing schedule params: parse object 'time-period' error
[2025-05-29T16:19:44.668+0200] {standard_task_runner.py:110} ERROR - Failed to execute job 8033 for task generate_incident_report (Invalid params: Error in parsing schedule params: parse object 'time-period' error; 21460)

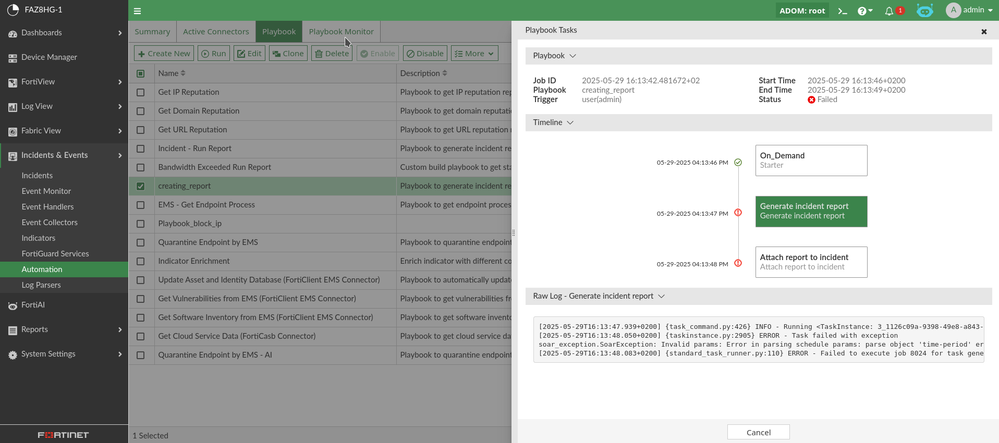

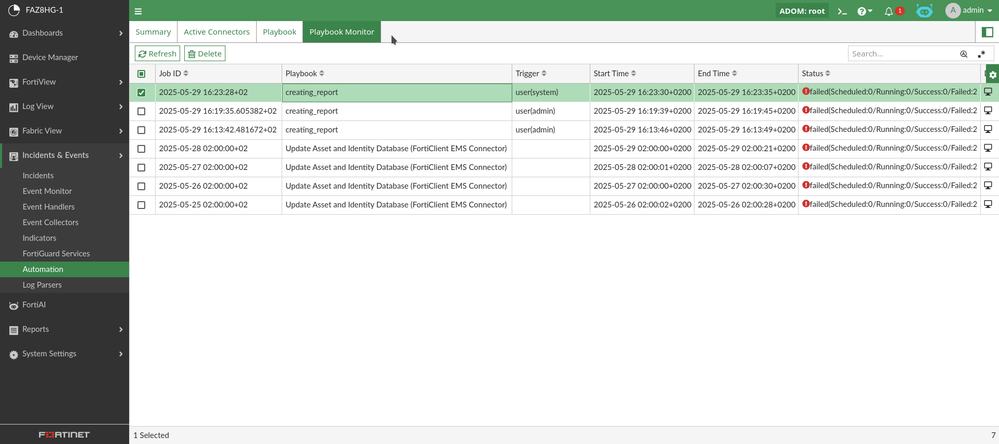

From the GUI side:
