Technical Tip: Tabulating the data in the Application widgets in FortiView Secure SD-WAN Monitor

[heng]

Description	This article describes how to tabulate the data widget for the Application Performance and the Application Bandwidth Utilization for GUI navigation view of, FortiView -> Monitor -> Secure SD-WAN Monitor (v7.0 & v7.2) FortiView -> SD-WAN -> Secure SD-WAN Monitor (v7.4) There are three widgets in the Secure SD-WAN Monitor that provides visibility for user application over the SD-WAN network which are: Application Bandwidth Utilization.   Per-Application Performance. Global-Application Performance. v7.0 & v7.2: v7.4: These data allow for various application logging for SD-WAN health information which included latency, jitter, packet loss, and bandwidth. FortiGate side will have to send the SD-WAN event logs with Log ID: 0113022936 to have this widget tabulated.
Scope	FortiAnalyzer version v7.0 and above.

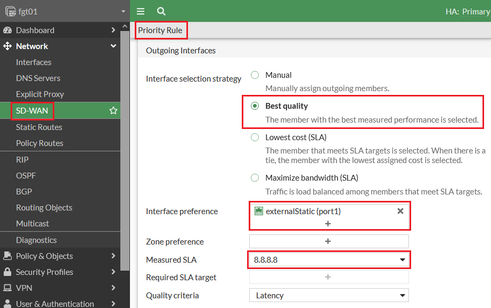

Solution	The FortiGate side will need to have and rely on the following configuration settings to achieve and tabulate these three widgets. The following sample config highlighted in red is mandatory. Most of the config is done via the CLI only, but a few corresponding GUI configurations are illustrated in this article. The trade-off to having this data tabulated is to disable the traffic acceleration feature on the Firewall policy (set auto-asic-offload disable)’ . Note: The 'Manual' interface selection strategy type does not support this type of event log. The supported values are 'Best Quality', 'Lowest cost (SLA)', and 'Maximize bandwidth (SLA)'. CLI: config system sdwan     config health-check         edit 8.8.8.8             set detect-mode passive             set sla-fail-log-period <value>             set sla-pass-log-period <value>         next     end     config service         edit 1             set mode priority  <- Best Quality.             set internet-service enable             set internet-service-name <applications>             set health-check "8.8.8.8"             set priority-members <interface ID>             set passive-measurement enable         next         edit 2             set mode sla <- Lowest cost (SLA).             set internet-service enable             set internet-service-name <applications>             config sla                 edit "8.8.8.8"                     set id <SLA ID>                 next             end             set priority-members <interface ID>             set passive-measurement enable         next         edit 3             set mode load-balance <- Maximize bandwidth (SLA).             set internet-service enable             set internet-service-name <applications>             config sla                 edit "8.8.8.8"                     set id <SLA ID>                 next             end             set priority-members <interface ID>             set passive-measurement enable          next      end end config firewall policy     edit 1         set passive-wan-health-measurement enable         set utm-status enable         set application-list "g-default"         set auto-asic-offload disable     next end GUI: Set the detect mode to Passive.  Best Quality settings. Lowest cost (SLA) settings. Maximize bandwidth (SLA) settings. Related article: Technical Tip: FortiView Secure SD-WAN Monitor.
