Technical Tip: Event handler triggered on sent or received bytes from specific IP address

[vraev]

Description

This article describes how to set up an event handler triggered by a specific size of sent or received bytes.

Scope

FortiAnalyzer.

Solution

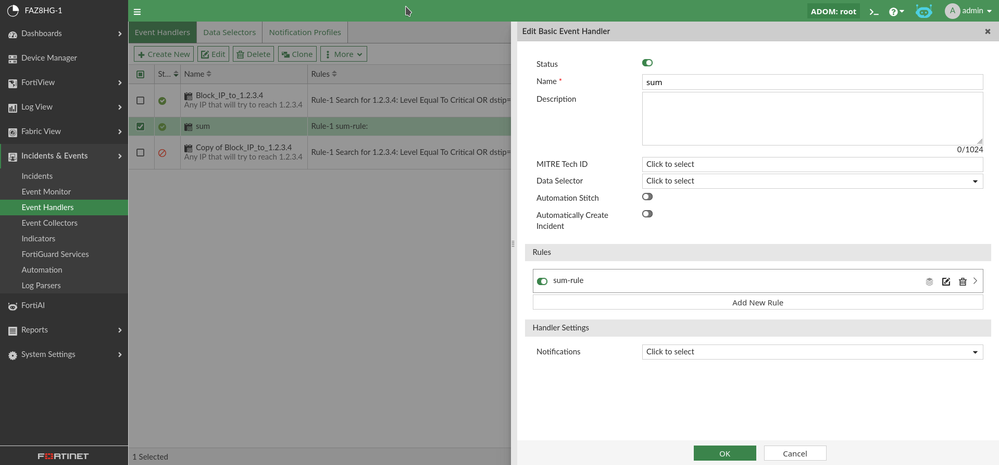

1. In FortiAnalyzer, go to Incidents & Events -> Event Handlers -> Basic Handlers -> Create New.
2. Configure the handler as follows:
   Name: sum.

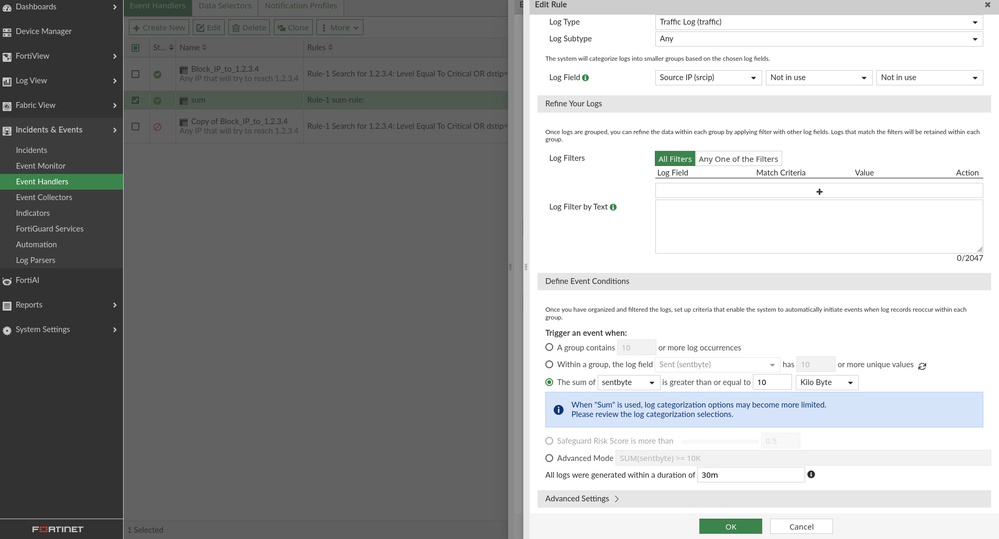

3. Create a new rule with the following configuration:

• Name: sum-rule.
• Log Subtype: Any.
• Log Field: Source IP (srcip).
  Remove any log filters.
  Trigger an event when the sum of sentbyte (rcvdbyte/sentpkt/rcvdpkt) is greater than or equal to 10 kilobytes.

Note: 10 KB is used just for testing here. In a real environment, the actual value should be based on what is required.
Possible options include Kilo Bytes, Mega Bytes, Giga Bytes, and Terra Bytes.

4. Select OK to save the rule, then OK again to save the handler.

5. Configure logging on a FortiGate that can generate logs to be sent to FortiAnalyzer.

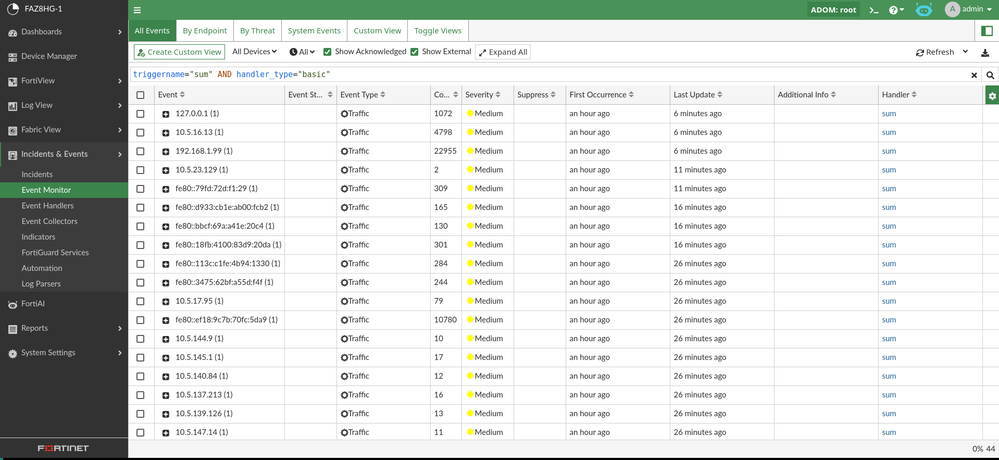

6. Go to Event Monitor and expand the event created by the handler configured above.

triggername="sum" AND handler_type="basic"

Note:

By using the 'Creating notification profiles', this information can be provided to the team in real time.

SUM option will work only if  :

• ADOM type is Fabric.
• And the SIEM Module is enabled.

If the SIEM Module is enabled can be verified via the:

config system global

(global)# set disable-module
fortiview-noc FortiView/NOC-SOC module.
siem SIEM module.
soc SOC module.
ot-view OT-VIEW module.
none No modules disabled.

The SIEM Module should not be listed as a 'disable-module'.
