Description
This article describes how to migrate FortiAP-U from FortiGate to FortiWLC.
Scope
FortiAP-U, FortiWLC and FortiGate.
Solution
In below example, FortiAP-U is connected to managed FortiSwitch switchport; FortiAP and FortiGate are in the same subnet; FortiGate manages both FortiAP and also FortiSwitch:
1) On FortiGate VLAN Interface (FortiAP VLAN), FortiAP VLAN should be enabled with DHCP and CAPWAP/Security Fabric Connection as shown below:
2) Map a Native VLAN on the FortiSwitch switchport where the FortiAP is plugged for the FortiAP to obtain an IP address from Native VLAN as shown below:
3) FortiAP will reboot automatically and it will get an IP address from the Native VLAN (DHCP scope) mapped to the switchport.
On FortiGate DHCP Monitor, check if the FortiAP has obtained new IP address in Native VLAN subnet as shown below:

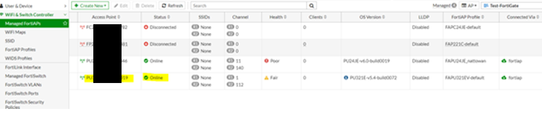

4) FortiAP -U entry should show up under 'Managed FortiAPs', then select FortiAP Entry and Authorize FortiAP -U to successfully manage the FortiAP -U on FortiGate as shown below:

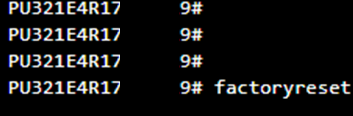

5) Using Putty take Telnet/SSH access to the new FortiAP IP address and then reset the FortiAP using 'factoryreset' command on the FortiAP CLI as shown below:
Note:
FortiAP Telnet/SSH will be accessible ONLY when Telnet/SSH access is allowed in the FortiAP- profile (wtp-profile) and under 'Managed FortiAPs' list 'Connect to CLI' should show up as shown below, using that CLI access to the FortiAP can be taken:
6) Thereafter, the FortiAP should automatically reboot and come up with the Meru image after around 3-5 minutes.
Notes.
- The above steps are useful in migrating bulk FortiAP-U units, using this procedure, it is possible to avoid taking physical console access to each and every FortiAP for factory reset via Reset button or Console CLI access methods.
- Also can avoid changing FortiAP-U boot-up image via console CLI access, because 'factoryreset' should reset FortiAP-U to default image and should discover FortiWLC (Meru) Controller.
- If FortiGate and FortiAP-U are in different VLANs/Subnets, then use 1(static) → 2(dhcp) → 3(dns) Controller discovery methods as mentioned in the below link:
- Fortinet’s FortiAP-U Series offers a wide range of Access Points capable of being managed by any of Fortinet’s controller and management options: FortiCloud, FortiGate, or FortiWLC.
- FortiAP™ Universal Access Point Series datasheet can be found in the below link:
https://www.fortinet.com/content/dam/fortinet/assets/data-sheets/fortiap-u-series.pdf
