| Description | This article describes how to troubleshoot the FortiView-Logical Topology in FortiADC. |
| Scope |
FortiADC 6.0.0 and later. |
| Solution |

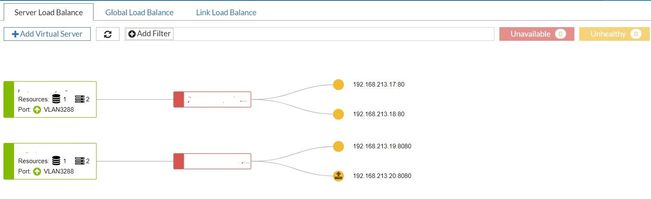

There is a possibility facing active and passive nodes look different in FortiView - Logical Topology in all VDOMs.
In an Active-Passive (A-P) deployment, it is expected for servers to be marked as green (up) on the active unit while appearing with a red line (down) on the passive unit. In such a deployment, this behavior occurs because Active-Passive deployment devices share the same IP address, which results in the primary device showing the service as up. |
